Coloration : Very loud, touch-sensitive and responsive with nice bell-sounding top end and a little bite
Genre : American Rock, Blues, and Country
Specifications
- Nominal Diameter: 10 " / 254 mm
- Voice Coil: 1.5 " / 38.1 mm
- Overall diameter: 256.8 mm
- Pitch Circle Diameter: 243.8 mm
- Section Diameter: 231.8 mm
- Diameter of fixing holes: 5.7 mm
- Depth: 109 mm
- Nominal Impedance: 8 Ohm(s)
- Nominal Load Capacity: 75 W
- Sensitivity (1 W / 1 m): 100 dB

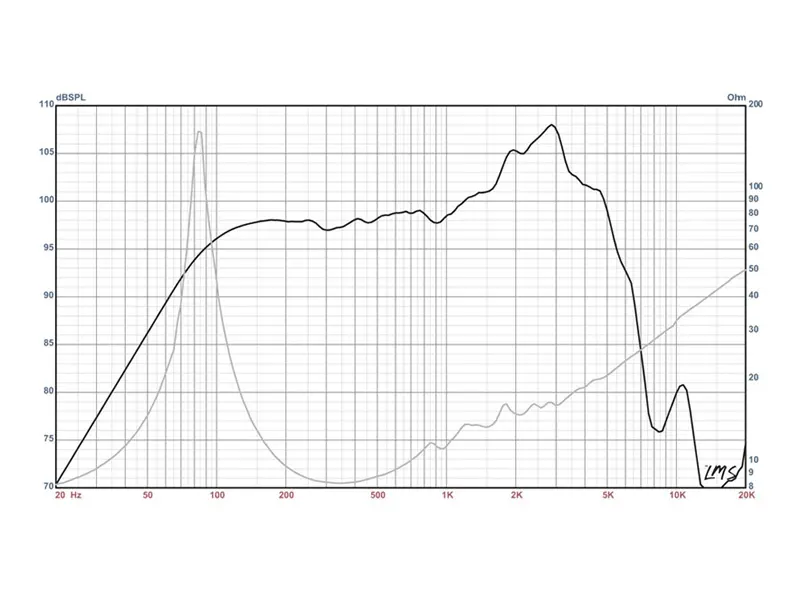

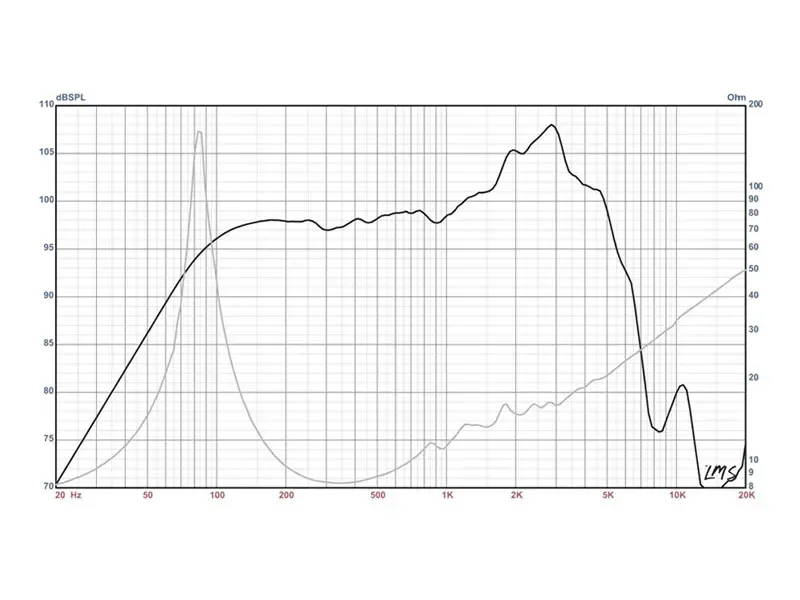

- Frequency response: 70 - 5000 Hz
- Voice Coil Material: copper
- Magnet: Ferrite
- Depth of the magnetic gap: 7.92 mm
Thiele & Small Parameter
- Fs (Resonance Frequency): 84 Hz
- Re (DC resistance): 7.3 Ohm(s)
- Qms (mechanical quality): 10.8
- Le (inductance of the voice coil): 0.39 mH
- Qes (electrical quality): 0.68
- Qts (overall quality): 0.64
- Vas (equivalent volume): 34.1
- Mms (moving mass): 20 g
- BL (power factor): 11.5 T/m
- Xmax (maximum displacement): 0.5 mm
- Cms (elasticity of the suspension): 0.18 mm/N
- Sd (membrane area): 366.1 cm²
- Weight: 3,72 kg
