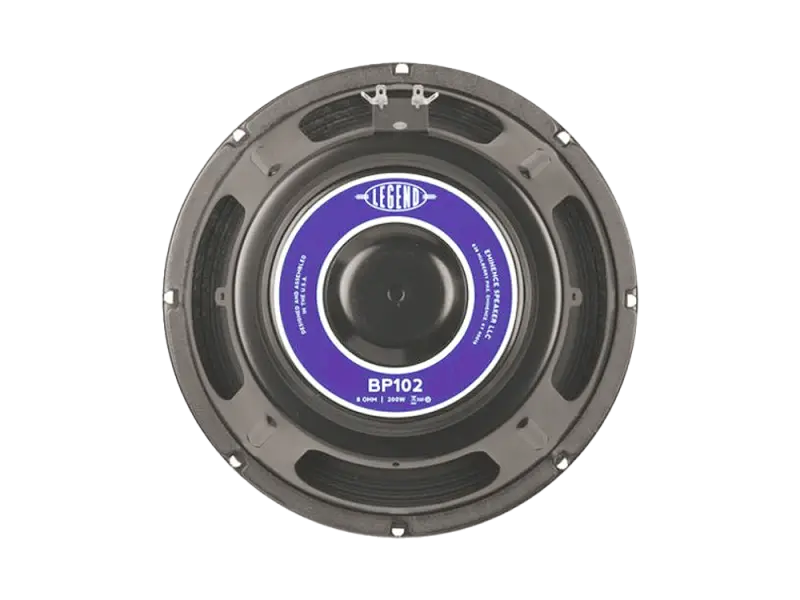

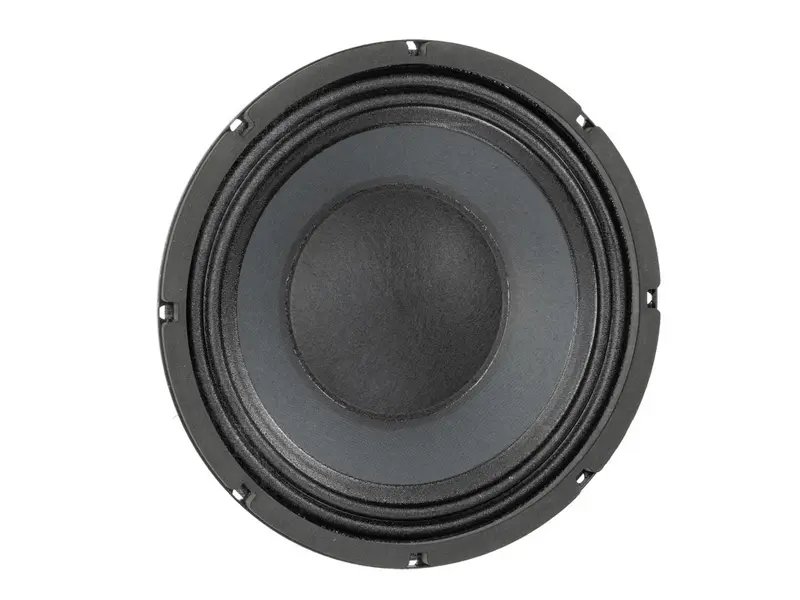

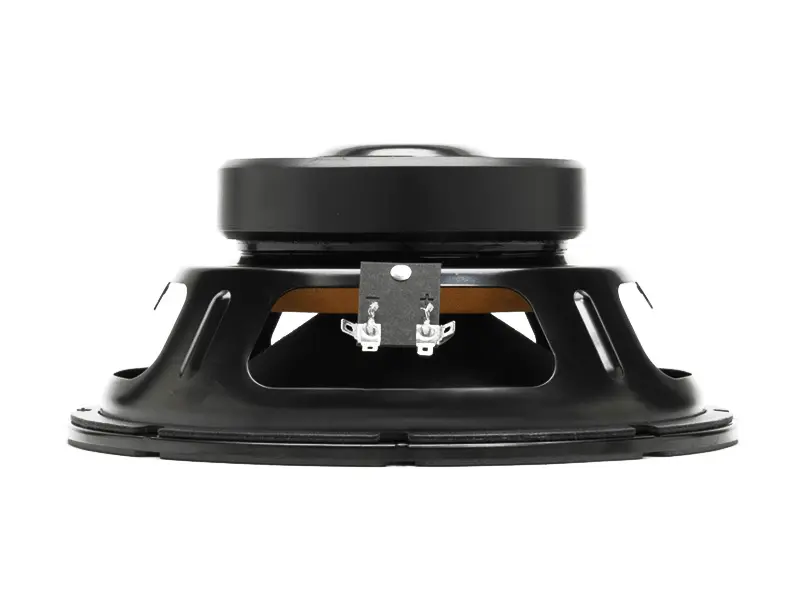

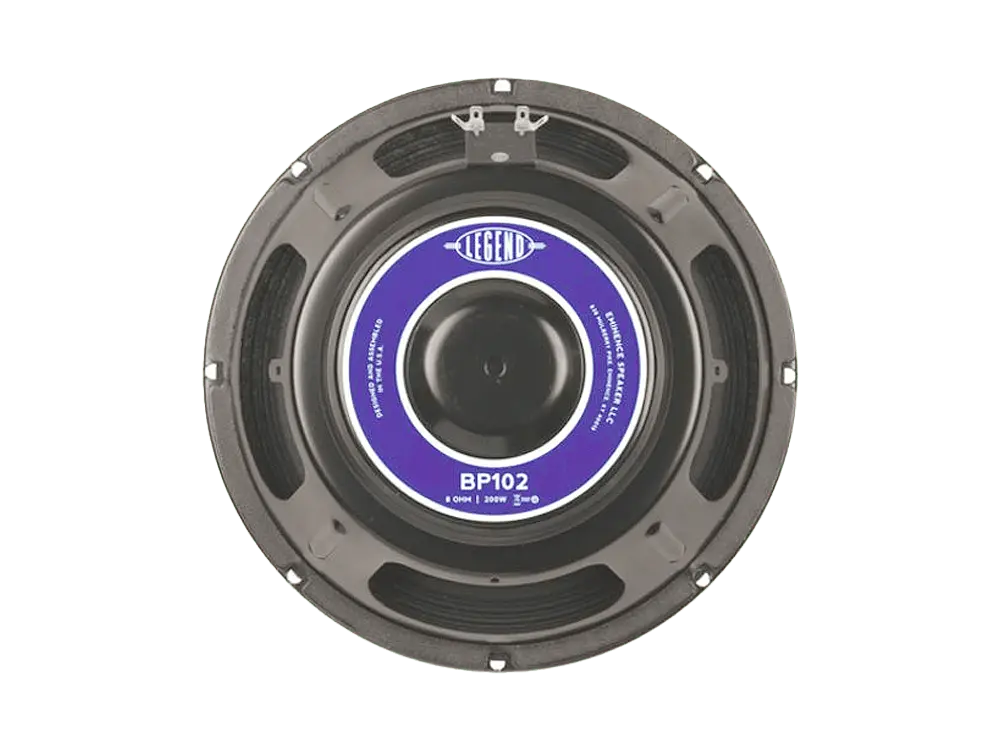

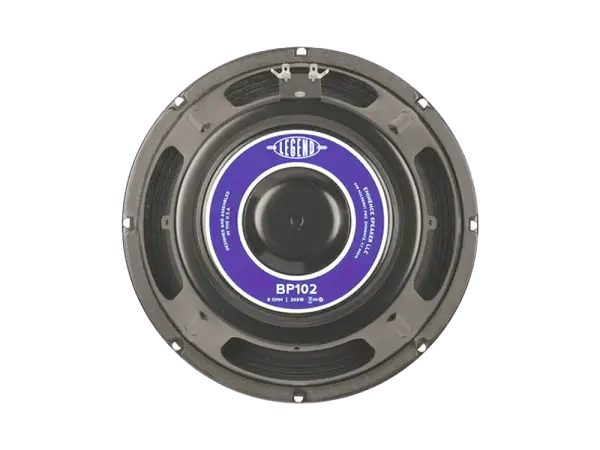

Eminence Legend BP102 10" 200 W 8 Ohm

Product No.:: em-EGLBP102A
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: 2 piece
RoHs:: conform
Weight:: 4.8 kg per piece

145,00 €

incl. VAT excl. Shipping costs

piece:

Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multidriver designs.

Specifications

Nominal Diameter: 10 " / 254 mm
Voice Coil: 2 " / 50.8 mm
Overall diameter: 256.1 mm
Pitch Circle Diameter: 245.4 mm
Section Diameter: 229.7 mm
Diameter of fixing holes: 6.4 mm
Depth: 108 mm
Nominal Impedance: 8 Ohm(s)
Nominal Load Capacity: 200 W
maximum rated load: 400 W
Sensitivity (1 W / 1 m): 92 dB

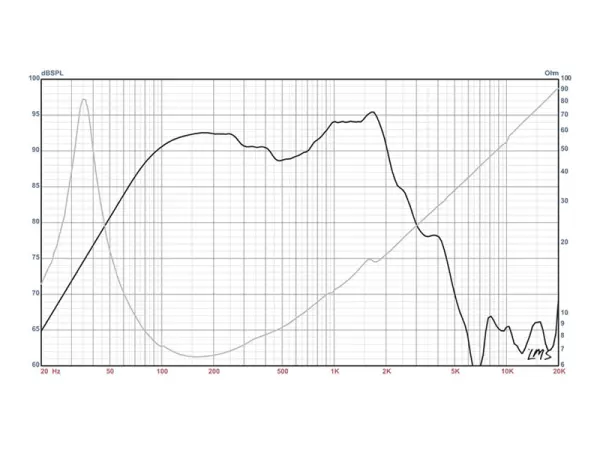

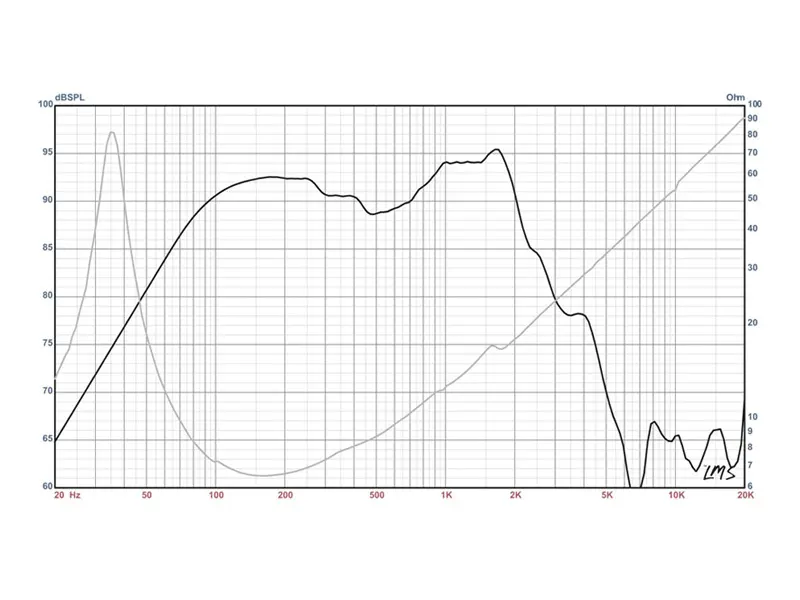

Frequency response: 40 - 2000 Hz
Voice Coil Material: copper
Magnet: Ferrite
Depth of the magnetic gap: 7.92 mm
Thiele & Small Parameter
Fs (Resonance Frequency): 35 Hz
Re (DC resistance): 5.59 Ohm(s)
Qms (mechanical quality): 5.36
Le (inductance of the voice coil): 0.83 mH
Qes (electrical quality): 0.47
Qts (overall quality): 0.43
Vas (equivalent volume): 91.2
Mms (moving mass): 38 g
BL (power factor): 10 T/m
Xmax (maximum displacement): 6.2 mm
Cms (elasticity of the suspension): 0.54 mm/N
Sd (membrane area): 334.5 cm²
Weight: 4,13 kg

Information about the manufacturer

Herstellerinformationen | Manufacturer Information
B&C Speakers s.p.a.
Via Poggiomoro, 1 - Loc. Vallina
50012 Bagno a Ripoli (FI)
ITALY
