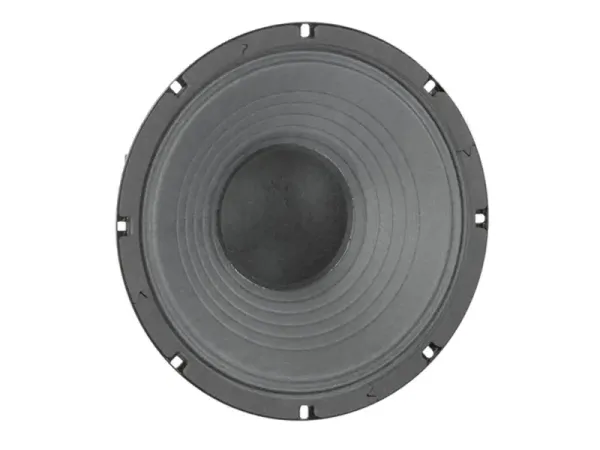

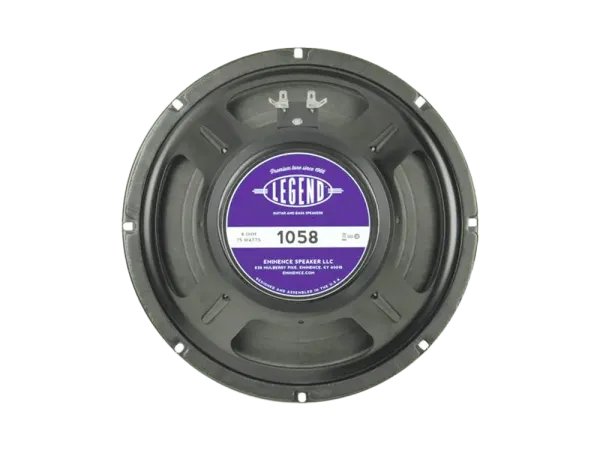

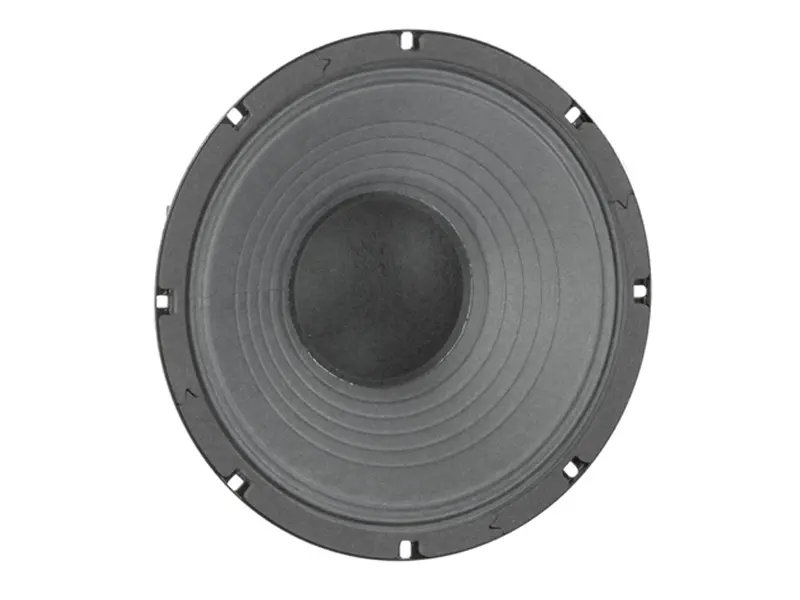

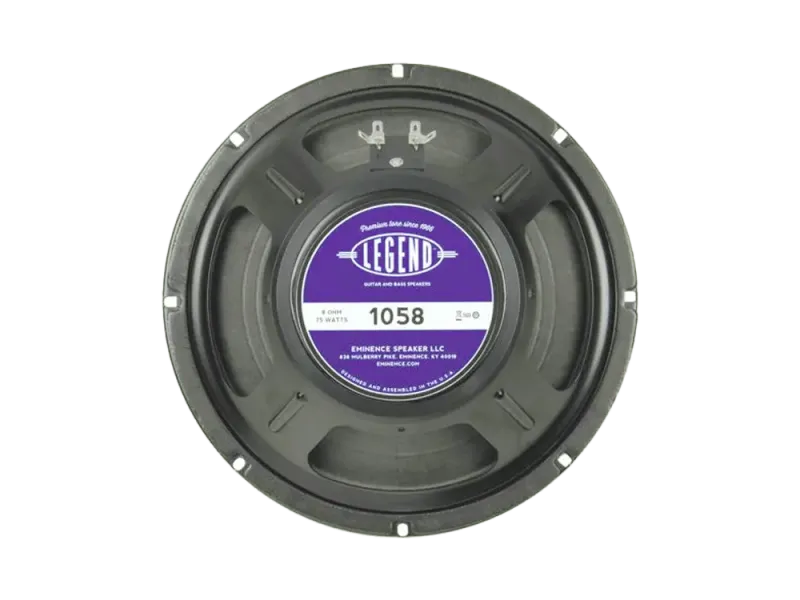

Eminence Legend 105 - 10" / 75 W / 8 Ohm

FULL - WAVE VACUUM RECTIFIER
5U4GB is a directly heated full wave octal base rectifier for Hi-Fi and guitar amplifiers. Suitable for use in any 5U4 socket.

Files:

• Datasheet

DOUBLE ANODE RECTIFYING TUBE
GZ34S is 5AR4 octal base rectifier diode. It provides strong current output. Suitable for all Hi-Fi and Guitar amplifiers.

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 10 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

The Sovtek 12AX7WA is a defacto standard in 12AX7 tubes for many years yet because of its high dependability and its low noise floor.

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 8,5 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 6,5 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

The Sovtek 12AX7WA is a defacto standard in 12AX7 tubes for many years yet because of its high dependability and its low noise floor.
