High power, British flavored guitar tone. Warm, rich low-end, with smooth mids, and strong highs. Lots of headroom before break-up.
Coloration : Warm, smooth and fat American tone, with a hint of smooth British break-up
Genre : Country, Blues, Jazz
Specifications
- Nominal Diameter: 12 " / 304.8 mm
- Voice Coil: 2 " / 50.8 mm
- Overall diameter: 305.5 mm
- Pitch Circle Diameter: 294.3 mm
- Section Diameter: 278.1 mm
- Diameter of fixing holes: 6.4 mm
- Depth: 114 mm
- Nominal Impedance: 8 Ohm(s)
- Nominal Load Capacity: 150 W
- Sensitivity (1 W / 1 m): 98.8 dB

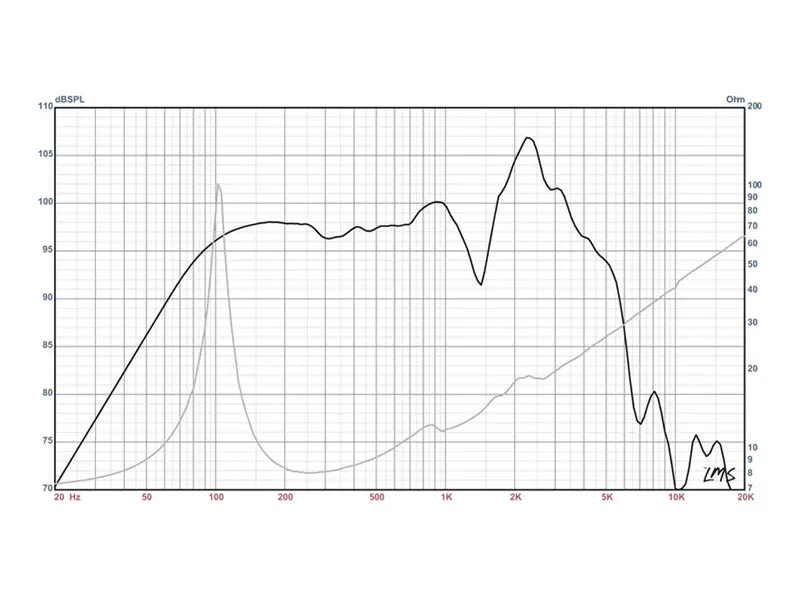

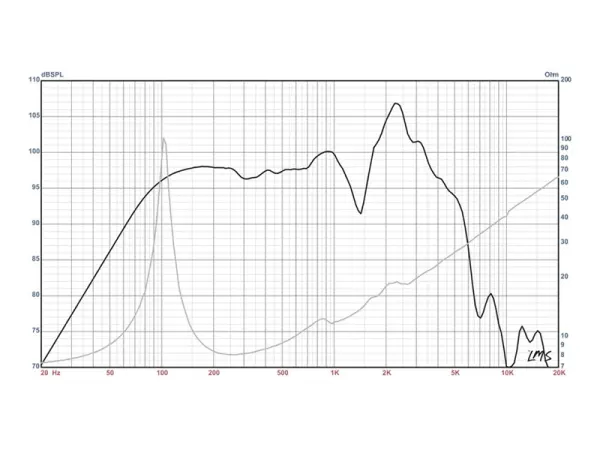

- Frequency response: 80 - 4200 Hz
- Voice Coil Material: copper
- Magnet: Ferrite
- Depth of the magnetic gap: 7.92 mm
Thiele & Small Parameter
- Fs (Resonance Frequency): 100 Hz
- Re (DC resistance): 6.95 Ohm(s)
- Qms (mechanical quality): 15.51
- Le (inductance of the voice coil): 0.69 mH
- Qes (electrical quality): 0.95
- Qts (overall quality): 0.89
- Vas (equivalent volume): 31.2
- Mms (moving mass): 29 g
- BL (power factor): 11.6 T/m
- Xmax (maximum displacement): 0.8 mm
- Cms (elasticity of the suspension): 0.09 mm/N
- Sd (membrane area): 506.7 cm²
- Weight: 4,81 kg
