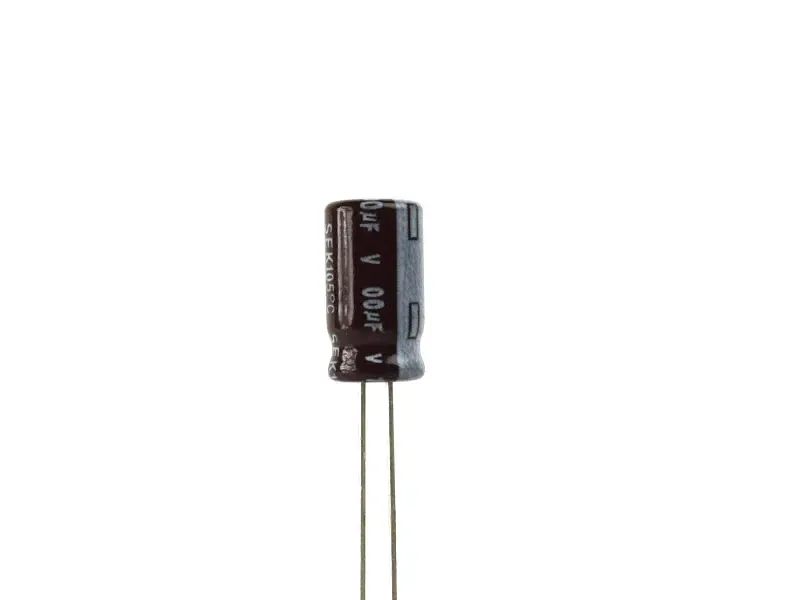

Elektrolyt 3,3 µF @ 63V

Description

Type: Electrolytic can capacitor
Capacitance: 3,3 µF
Voltage Rating: 63 V
Tolerance: - 20 % / +20 %
Operating Temperature Range: - 40°C / + 105 °C
Dimensions: Ø 4 mm x 7 mm
Termination Style: radial
Grid: 1,5
