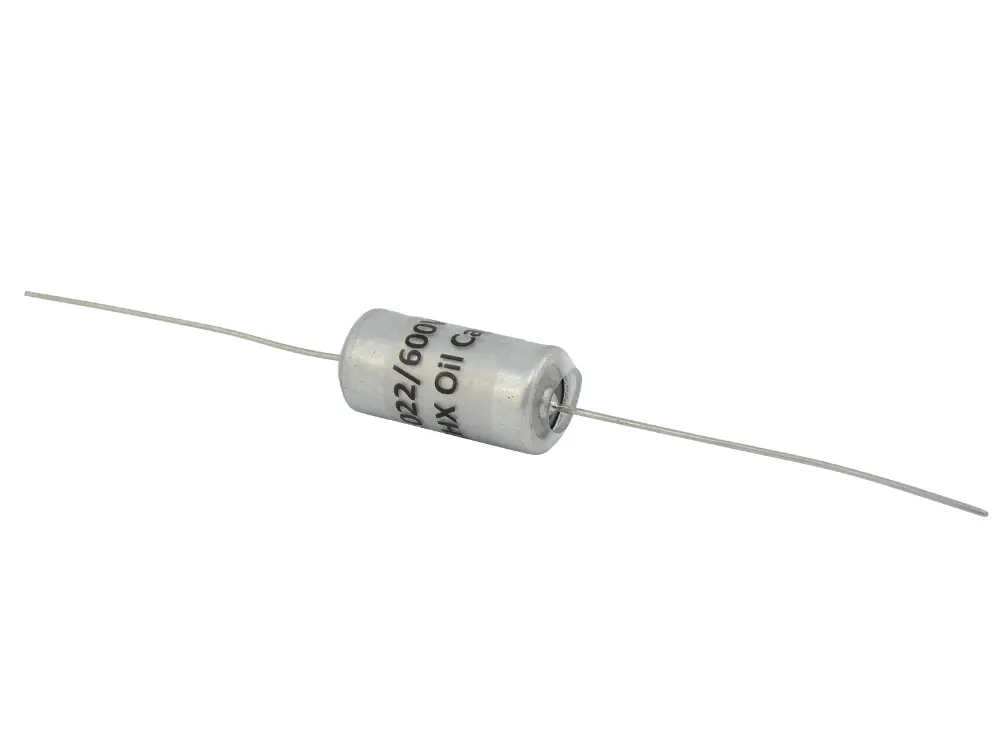

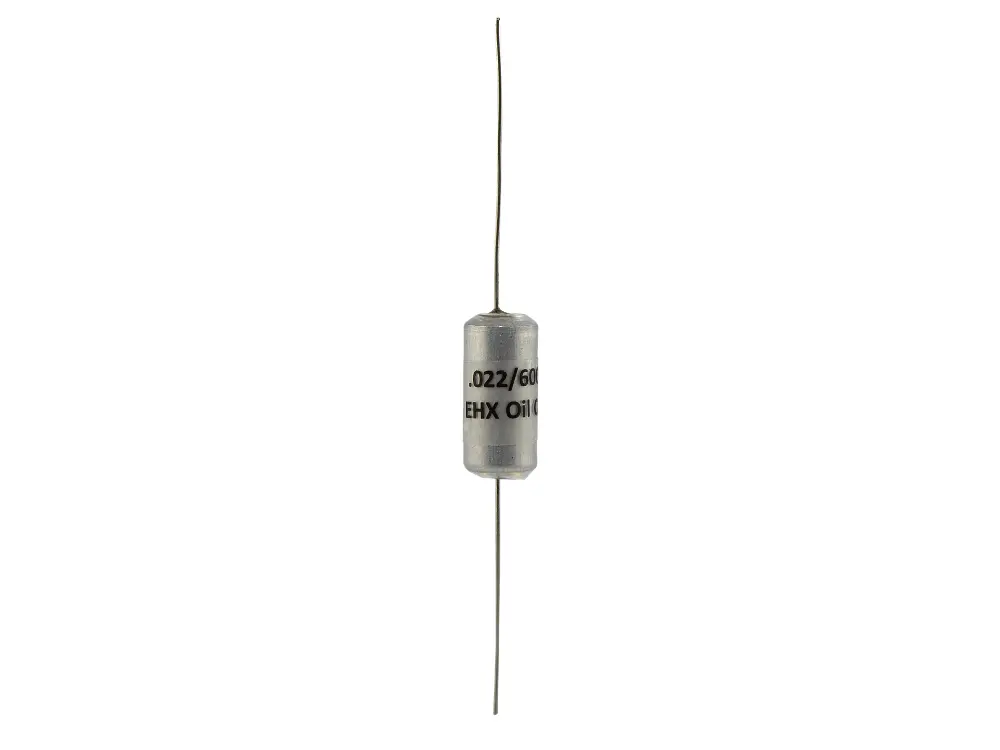

EHX Oil Capacitor 0,0022 µF/600 V axial
EHX Oil Capacitors are oil impregnated, polyester capacitors that are enclosed in aluminum cylindrical cans and hermetically sealed for superior performance and durability. Impregnating the capacitors in oil eliminates air bubbles between the dielectric and foil that could affect their stability during operation. This enables the capacitors to operate over a wide temperature range with a very tight tolerance.
Originally, oil capacitors were only used in military and precision equipment as well as Hi-Fi audio. Due to their rich, natural tone, they are now widely used in guitars and guitar amplifiers. EHX Oil Capacitors have a balanced, detailed sound with a smooth, vintage top end. They will make any guitar or amplifier more responsive, touch sensitive, and refined.
Spezification:
- Capacitance: 0,0022 µF
- Voltage Rating: 600 V
- Dimensions: Ø 11 mm x 24 mm
- Termination Style: axial
Safety Information for Electrical Components, Especially for Tube Amplifiers
For all electrical, electromechanical, and mechanical components, the specifications and operating parameters defined by the respective type standards generally apply.
Further information, where available, can be found in the respective data sheets and product descriptions included with the product.
General Information
Amplifier Tubes
For qualified personnel only! Installation and removal of power transformers, chokes, output transformers, and switching power supplies may only be carried out by qualified specialists.
For all electrical, electromechanical, and mechanical components, the specifications and operating parameters defined by the respective type standards generally apply.
Further information, where available, can be found in the respective data sheets and product descriptions included with the product.
General Information
- NOT SUITABLE FOR CHILDREN – choking hazard due to small parts
- NOT SUITABLE FOR UNTRAINED PERSONS – danger to life due to high voltages
- The safety and processing requirements applicable to the component must be observed
- CE conformity applies only when installed professionally
- Warranty becomes void in case of improper handling
- The operator is responsible for proper installation
- Local regulations and VDE provisions must be complied with
- Never exceed the rated power
- Never exceed the rated voltages and currents
- Use of measuring instruments (multimeter, oscilloscope) and evaluation of measurement results
- Safe handling of high voltages (up to 500V and more)
- Reading and understanding circuit diagrams
- Selection of appropriate tools
- Knowledge of electrical components and their characteristics
- First-aid knowledge for electrical accidents
- Knowledge of VDE regulations and safety requirements
Amplifier Tubes
- Hazard due to high voltages
- Hazard due to very high heat generation
- Hazard due to glass breakage
- Hazard due to UV radiation in case of defective tubes
For qualified personnel only! Installation and removal of power transformers, chokes, output transformers, and switching power supplies may only be carried out by qualified specialists.
- Hazard due to high voltages
- Risk of electric shock
- Hazard due to heavy weight
- Risk of injury
- Fire hazard in case of overload
- Explosion hazard if electrolytic capacitors are connected with incorrect polarity
- Never exceed the rated operating voltage
- Hazard due to high voltages
- Risk of electric shock
- Capacitors can store voltage for hours
- Hazard due to high heat generation
- Hazard due to high voltages
- Fire hazard in case of overload
- Hazard due to hot surfaces
- Risk of burns
- Replace only with identical ratings
- Never bypass or "repair" a fuse
- Identify the cause of fuse failure before replacement
- Fire hazard when using incorrect fuse ratings
- Hazard due to switching sparks
- Contact damage in case of overload
- Fire hazard due to defective contacts
- Hazard due to high voltages at the contacts
- Fire hazard in case of overload
- Mechanical damage may lead to short circuits
- Hazard due to high voltages
- Heat generation
- Risk of burns
- Observe correct polarity
- Malfunction in case of incorrect polarity
- Heat sinks required for power diodes
- Hazard due to high voltages
- Check insulation for damage
- Ensure proper strain relief
- Fire hazard due to undersized cables
- Touch protection required for high-voltage connectors
- Risk of burns due to hot surfaces
- Risk of mechanical injury from moving fans
- Electrical hazard in case of defective fan motors
- Hazard due to sharp edges
- Fire hazard during soldering
- Hazard due to solder fumes
- Adequate ventilation required
- Observe ESD protection
- Risk of injury due to sharp edges
- Electrical safety must be ensured
- Observe proper grounding
- Provide adequate ventilation openings
- Ensure protection against contact with live parts
- Hazard due to high voltages in analog instruments
- Fragile glass front
- Risk of injury
