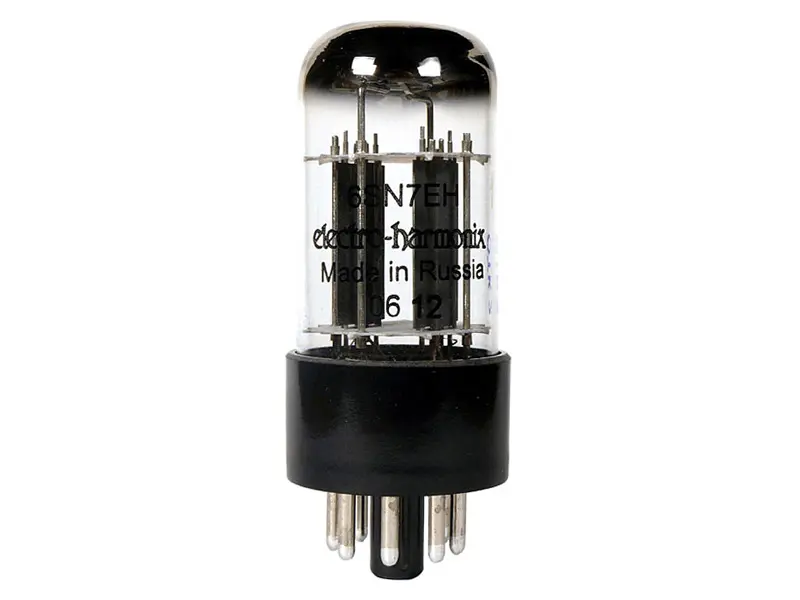

EH 6SN7

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

• Type: Metalized Polyester Film Capacitors (PET)
• Voltage Rating: 630 VDC / 220 VAC
• Tolerance: +/- 10%
• Operating Temperature Range: - 55°C / + 100 °C
• Termination Style: axial

• Signal wire LiYDY 1 x 0,5 mm², shielded
• Diameter Outside: ca. 3,2 mm
• Voltage Rating max: 250 V
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• Length: 2 m

4 tubes, matched as quad

Designed to the exacting specifications of the Philips 6CA7. The 6CA7EH is built to withstand today's high-gain amps while still retaining the detailed tone and component integrity of the original.

Single tube, not matched

Designed to the exacting specifications of the Philips 6CA7. The 6CA7EH is built to withstand today's high-gain amps while still retaining the detailed tone and component integrity of the original.
