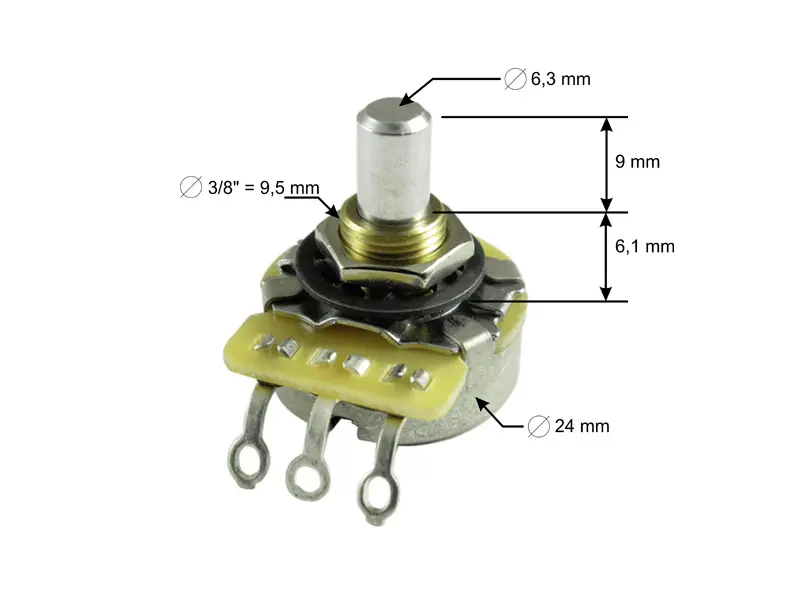

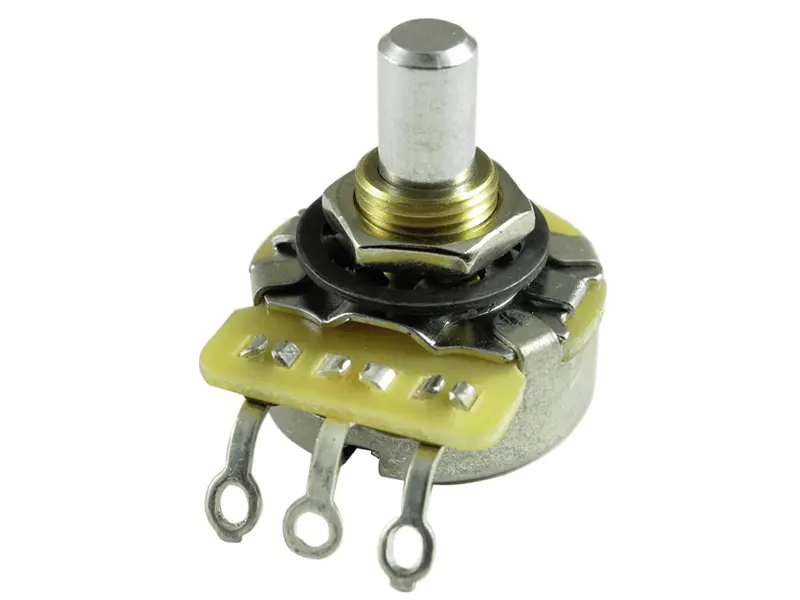

CTS Potentiometer 500 kOhm log, Solid Shaft

COMBINATED DOUBLE TRIODE
ECC832 is 12DW7 pre-amplifying double triode. It combines 12AX7 and 12AU7, where the 12AX7 is used as 1st stage and the 12AU7 as 2nd stage.

Files:

• Datasheet

Metalfilm Resistor
Great for amps and effects, low noise, small size, high power rating

Spezification:

• Power: 0,5 Watt
• Voltag: 350 V working / 700 V overload
• Axial Leads
• -55° C - 155° C
• 9,4 * 3,2 mm
• 1,0 %
• RoHS

ORANGE DROP®, 716 P Series

• Polypropylene Film Capacitors, extended foil
• Voltage Rating: 600 V
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial, copper leads

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Capacity: 100+100 µF ±20 %
• Rated Voltage: 450 Volts DC
• Dimensions: Ø30xL50 mm
• Terminals: Ø1.40xL50 mm
• Temperature Range: -25°C/-13°F...+105°C/+220°F
• Conductor Material: Aluminum Foil

Universal size for 12" speakers
Dome diameter: 80 mm - recommended for most of the guitar loudspeaker with average beaming

As the frequency increases, the radiation of a loudspeaker is increasingly focused on its center. If the listener is in this beam, the sound is extremely harsh and biting; if one moves to the side of it, the sound becomes significantly darker and treble components are partially missing.
To reduce this behavior, a diffuser is used. This sits directly in the beam of the speaker and deflects the high frequencies very strongly, it breaks the "beam". This makes the sound much fuller and more balanced.

Hear the Diffusor in action on ->YouTube (made by one of our customers, Thanks !)

Socket converter to mount Belton noval sockets in cutouts made for octal sockets
Material: 2 mm Aluminium

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-SpezificationTolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

• Primary: 115, 220, 230 & 240 V @ 50/60 Hz
• Sec. 1: 720 V C.T. @ 200 mA, 60 V Bias Tap
• Sec. 2: 6,3 V C.T. @ 6 A
• Sec. 3: 6,3 V C.T. @ 3 A

Files:

• Datasheet

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 6,3 mm x 32 mm
• Pack of 10
