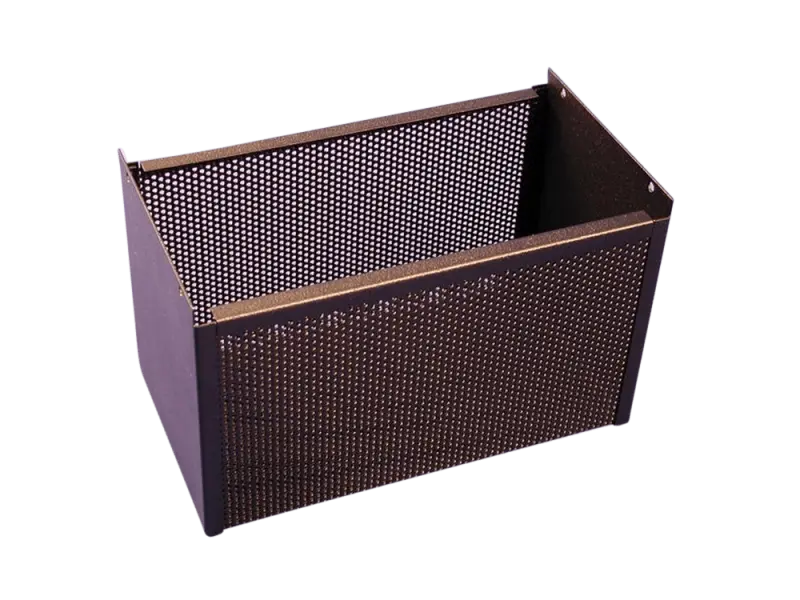

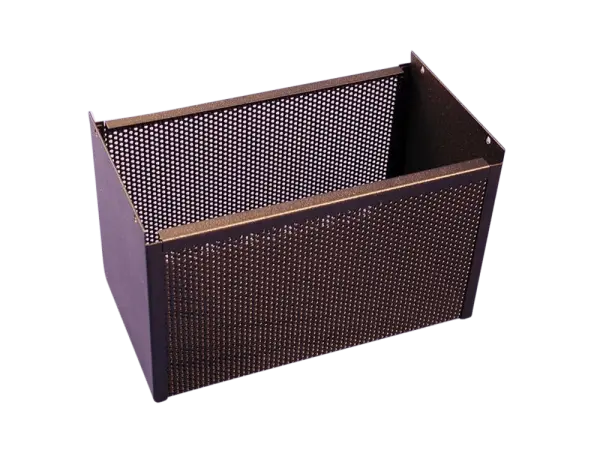

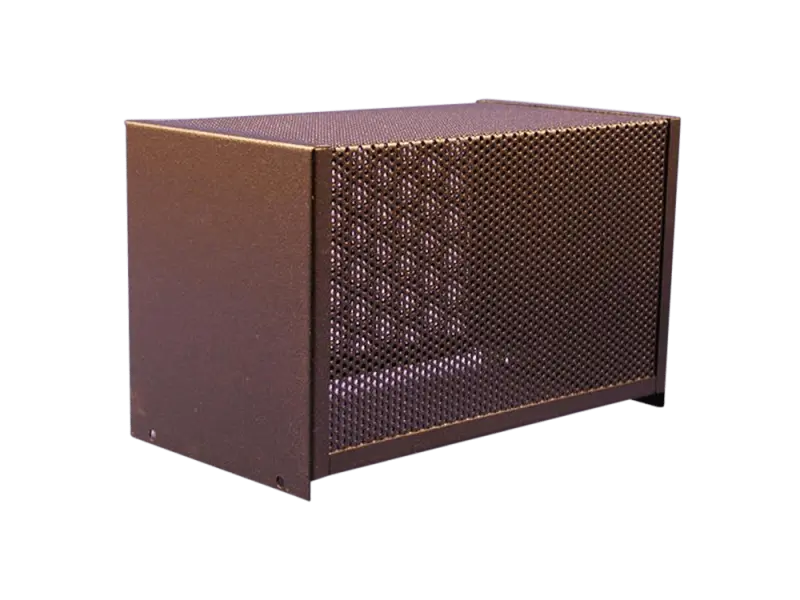

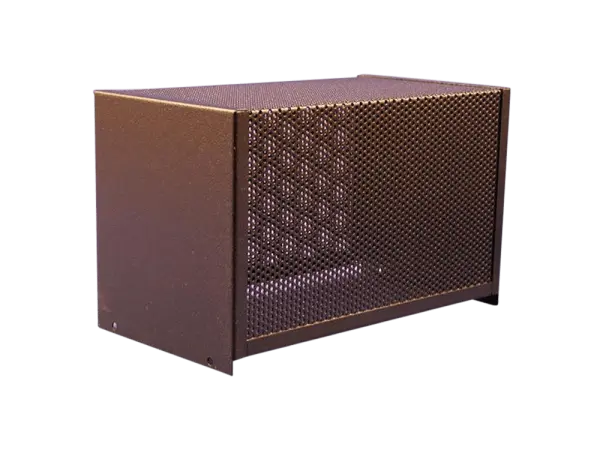

Cover 1451-16 black

• Spot welded steel - heavy duty construction chassis.
• Finished in ASA 61 smooth grey or satin black powder paint.
• Optional bottom plates are punched with 4 holes – 3/16” diameter (Chassis requires drilling to install optional bottom plates).
• Hardware not provided
• Size: 254 x 152 x 51 mm

Files:

• Datasheet

• Blackface Reverb Driver 125A12A, 47605 Single-Ended
• Pri: 7500 Ohm
• Sec: 8 Ohm
• Power: 3,5 Watt

Files:

• Datasheet

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 6.0 mm
• Material: galvanised steel
• Length: 20 mm

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 6.0 mm
• Material: galvanised steel
• Length: 15 mm

Custom Shop Faceplate, Acryl Reverse, laser engraved

The engravings on this material get transparent and get filled with paint by us afterwards. Just like the ProReverse but with a glossy surface. This material looks very noble! Check the options list for possible colour combinations.
Faceplates made of this material are suitable for applications with high demands on stress, since the engravings are protected behind a layer of plexiglass. Furthermore the material appeals very noble due to the gloss effect and leaves a precious impression.

• Material: 1,5 mm Acryl Reverse - GLOSSY
• Working area: see option list
• Colors:    see option list
• Engraving: Yes
• Cutting: Yes
• Resolution: max. 500 dpi
• Machining: Laser

Important:

• We will not produce faceplate which contain copyright-protected elements like logos or names !
• Minimum size of an plate: 10 x 5 cm
• Smaller objects should be connected to larger objects otherwise they can get lost. Example: connect the i-dot with the rest of the lettering for a cut-out lettering.
• Minimum distance between two plates: 3 mm

How does it work ?

First of all you should read the documents and infos on the TT LaserShop Pages !

a) Select the required size, material and color combination

Hint: Several objects can be placed on a work surface, so cost-efficient material processing is possible. Example: two plates with a size of 55 x 490 mm (front and back plate) can be placed on a work space H2 with the overall size of 150 x 600 mm and can be ordered together. The configurations and optimizations have to be present in the submitted data.

b) Submit the order through the online shop.

c) Prepare the data according to our specifications. You can UPLOAD the finished data below on the page or sent it to us after completion of the order by e-mail (info at tube-town.de).

d) That's it. The rest is our job.

Note on the Parameter "Plates per Sheet"
The number of plates or logos per sheet. The more plates are on one sheet the longer the runtime is. We can make a maximum of 40 plates per sheet.

Note on "Logo-Option"
If your data contains large areas which need to be engraved (mostly seen on logos or plates for stomp-boxes) then you should check this option then we will engrave the plates twice to make sure that the quality is a as good as possible.
In principle, however, it should be avoided to use large, monochrome areas because one will always see small lines from the laser engraver.


 !! IMPORTANT: WHEN CREATING THE PDF FILE, MAKE SURE TO CONVERT THE FONTS TO CURVES. !!
Overview of the requirements click here

• Version 2024
• 1,6 mm, black solder mask
• can be used directly as "eylet board"
• turrets for 2mm boards can also be used
• the pin distance is more than 2,5 mm
• conform with actual VDE regulations
• operating voltage 500 V DC
• designed for Belton noval and octal sockets
• with tabs at the side for mounting on an octal socket, these can be snapped off if not needed
• recommended spacer bolts: 30 - 40 mm, M3
• check "accesories" for recommended and fitting parts

• Application Notes Turret-PCB
