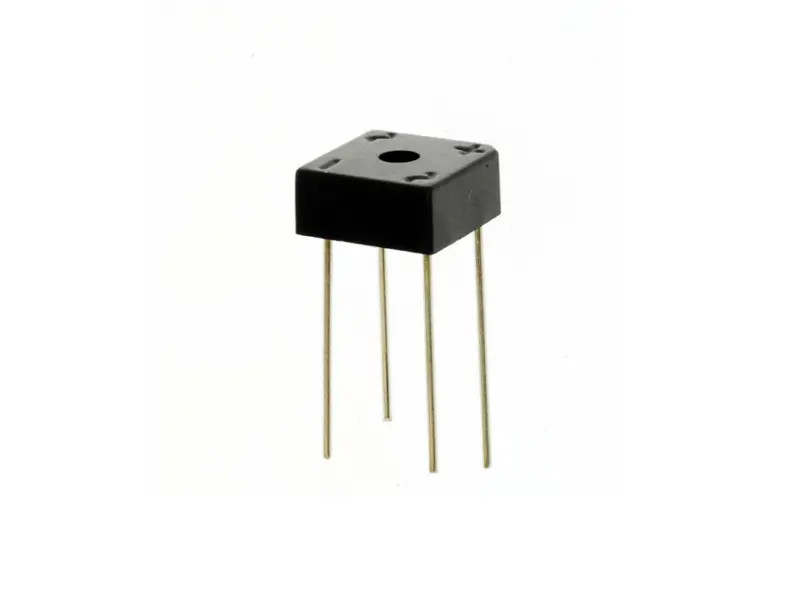

Bridge Rectifier BR102

Tube-Town E83CC Preamp-Tube

High-quality 12AX7 / ECC83 / 7025 preamp tube with low background noise and reduced feedback tendency due to short anode plates, as well as a powerful bass and a dense sound. Very suitable for input stages with high amplification or amplifiers with generally high gain.
Dropin replacement for all 12AX7, ECC83, 7025, and E83CC tubes.

Electrical Characteristics

• Heater voltage (Uf): 6.3V or 12.6V
• Heater current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode voltage (Ua): Maximum 300V
• Grid voltages (Ug1): -2V (typical)
• Grid voltages: -50V to 0V
• Anode current (Ia): 1.2mA (typical)
• Anode power dissipation: Maximum 1W per triode
• Anode resistance (ra): 62.5kΩ
• Amplification factor (μ): 100
• Transconductance (S): 1.6mA/V
• Input capacitance (Cin): 1.6pF
• Output capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater operation: The tube can be operated with 6.3V or 12.6V, depending on the circuit design.
• Grid resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable functionality.
• Coupling capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high-frequency interference.

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 14 mm x 28 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 220 µF
• Voltage Rating: 350 V
• Tolerance: - 10%+30%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 38 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

TT Selection: Balanced
Both systems with balanced gain

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

• 2+1 Solder lugs
• vertical

2 tubes, matched as pair

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet
