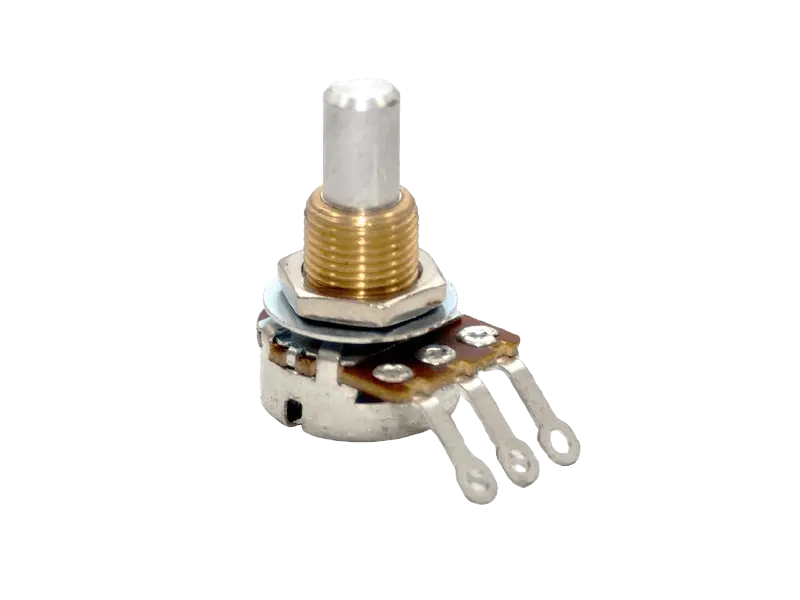

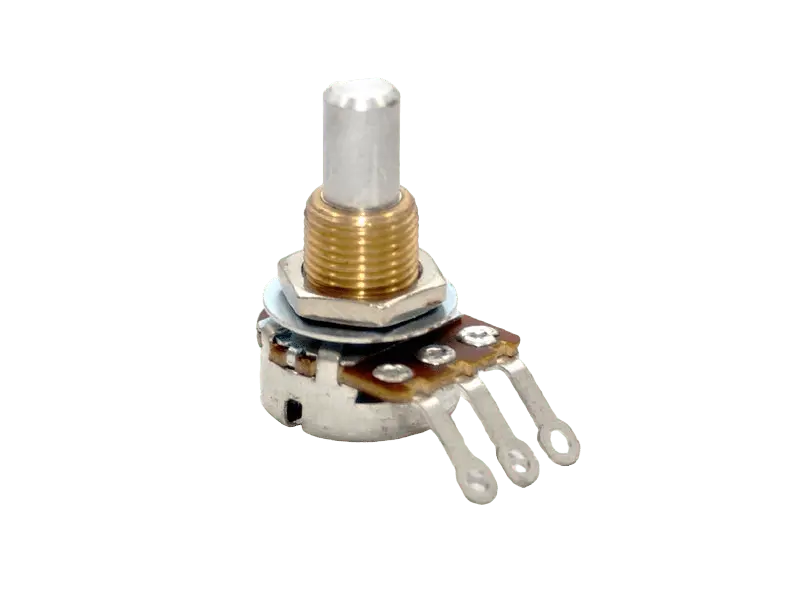

Bourns Potentiometer Mini 500k Log Solid Shaft

2 tubes, matched as pair

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

• Datasheet

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Remake of a 12AY7 / 6072. Smooth sound, great for fender-like amps.

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

2 tubes, matched as pair

Rugged and reliable EL84 / 6BQ5 tube

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

Sweet and warm sounding preamp tube with high gain. We recommend this tube for guitar/bass amps.

Files:

• Datasheet

TT Selection: Balanced
Both systems with balanced gain

JJ's version of the ECC81/12AT7 tube type with a warm and soft sound. Often used for phase inverters or reverb drivers.

Files:

• Datasheet

JJ's version of the ECC81/12AT7 tube type with a warm and soft sound. Often used for phase inverters or reverb drivers.

Files:

• Datasheet
