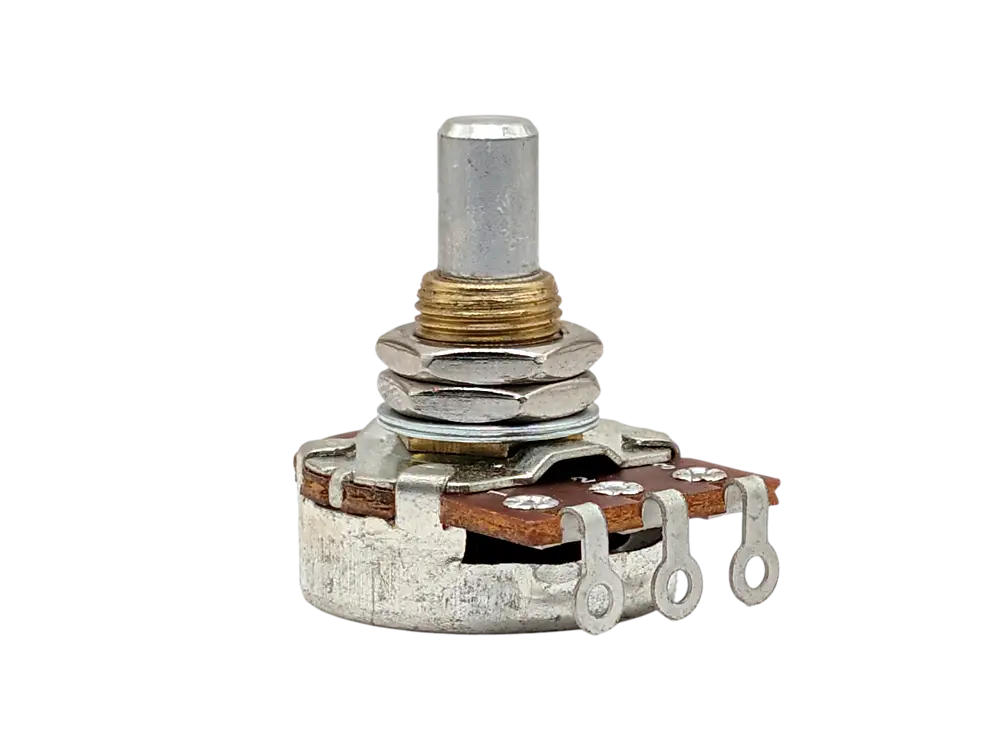

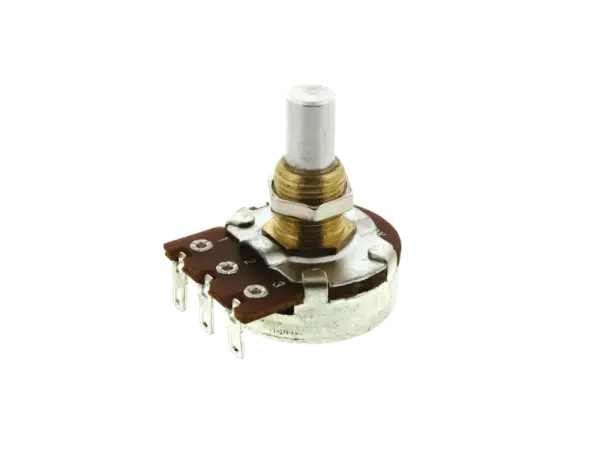

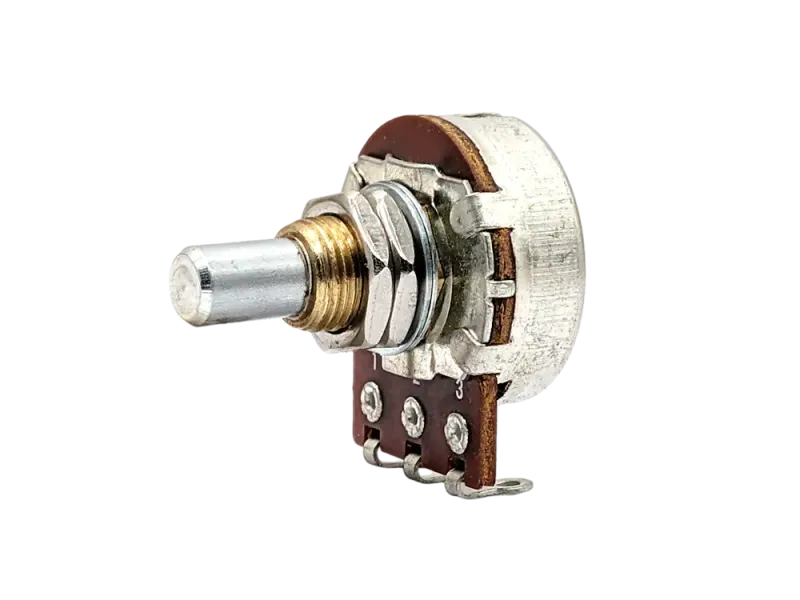

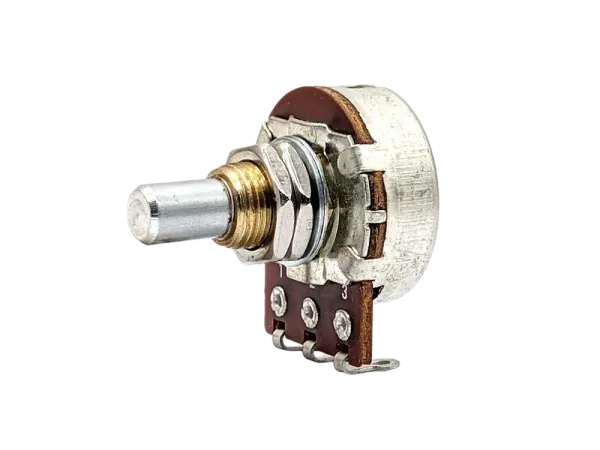

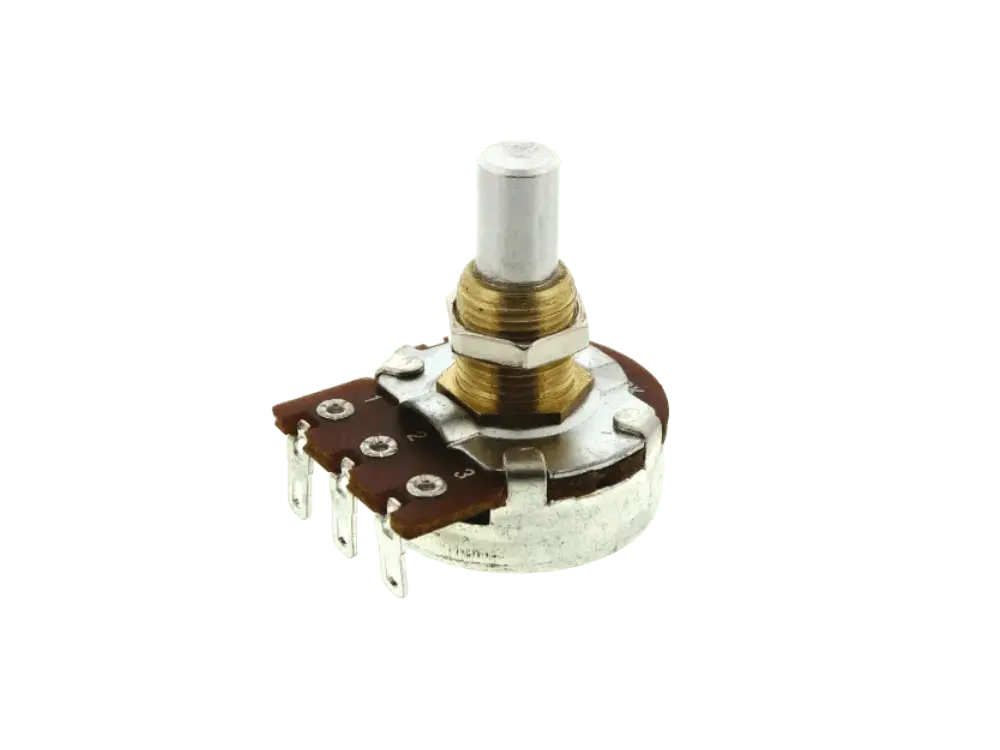

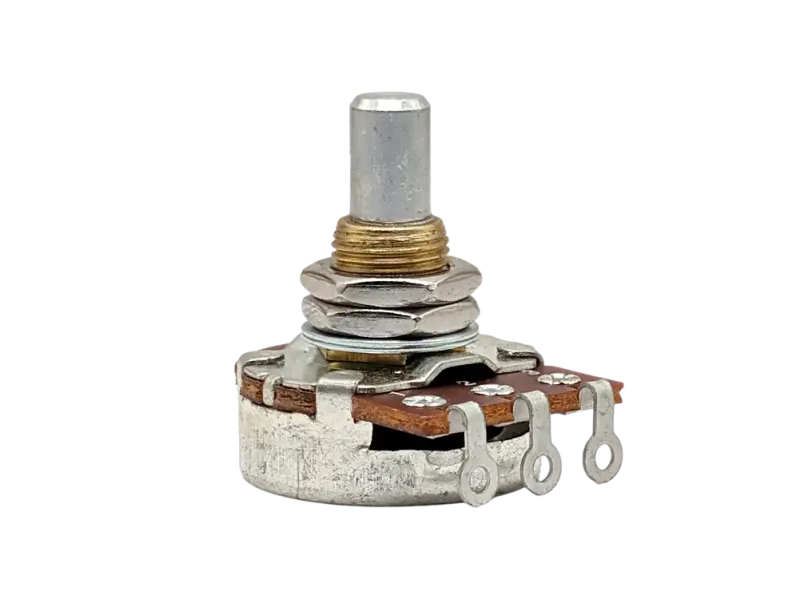

Bourns Potentiometer GTR 500k log Solid Shaft

Width approx. 135 cm
Price per running meter
Color reproduction depends on the computer monitor and may vary
Supplied as one continuous piece when ordering more than 1 m

Material:

• 80% PVC film
• 20% polyester-cotton fabric
• REACH compliant

Please note!
When ordering more than 1 m of Tolex and selecting Deutsche Post / DHL Paket or Express as the shipping method, the Tolex will be cut to a width of approx. 115 cm. This is due to the maximum permitted parcel length of 120 cm for these shipping services.
To receive the full roll width, GLS or ExprexxXL must be selected as the shipping method.

The TRICONE® MKII is a flexible cable for guitar, keyboard, the live musician, studio keyboarder, and the home recorder. Based on the sound wire diameter of 0.22 mm² and the fine individual strands of 0.10 mm, it is protected against cable breaks and convinces with high bending cycles. It is very robust, easy to wind, and very reasonably priced.

When working with it care should be taken when removing the concutive shielding (black PVC-hose) from the insulation, so that it does not touch the inner conductor.

TRICONE® is a protected and registered trademark of SOMMER CABLE GmbH.

THE ADVANTAGES:

• Very robust due to the large conductor diameter and fine individual stranding
• Good electrical values due to the insulation made of skin PE
• 100 % Protected due to double shielding (copper spiral + conductive carbon shielding)
• High number of bending cycles

THE APPLICATION:

• Dependable cable for live application (guitar and keyboard)
• Reasonable line or patch cable for the home recorder

TECHNICAL DATA:

• Construction LI2Y(LS)DY1x0.22mm²
• Jacket, diameter PVC 5,9 mm
• AWG 24
• No. of inner conductors 1 x 0,22 mm²
• Copper strand per conductor 28 x 0,10 mm
• Conductor insulation skin PE 1,8 mm
• Shielding copper spiral shielding + semiconductor
• Shielding factor 100 %
• Temperature range min. -20 °C
• Temperature range max. 70 °C
• Fire load per m 0,26 kWh
• Color: black
• Weight per 1 m 42 g

ELECTRICAL DATA:

• Capac. cond./shield. per 1 m < 85 pF
• Cond. resistance per 1 km < 90 Ohm
• Insulation resist. per 1 km > 1 GOhm

This power cable features a Schuko plug (Type F, CEE 7/7) on one end and a C13 device socket on the other. This cable is a great replacement for worn-out power cords.

Key Features

• Schuko plug to C13 device socket
• 10A maximum current capacity
• 250V operating voltage
• 2m cable length
• 0.75mm² conductor cross-section
• CE and WEEE certified

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 28 mm
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

Vacuum Tube Damper made of silicon, helps to reduce noise and rattle of vacuum tubes. But it will not turn a bad tube into a good tube.
If a higher level of damping is needed, than use more than one damper per tube.

• Inner diameter ca. 22 mm
• Can not be used with JJ 12AX7 and other JJ preamp tubes with similar diameter and JJ EL84 and JJ EL844
• Price per damper

BEFORE ordering check the exact outer diameter of the vacuum tubes and compare it with the diameter of the damper to make sure that the damper fits.

• Type: Panel Mount Potentiometer
• Power Rating: 0,5 W
• Voltage Rating: 750 V DC
• Shaft: 6,10 mm, knurled
• Shaft length: 15 mm
• Drill Ø: 9,4 mm
• Termination: Solder lugs
• Dimension: 24 mm

Bourns PDA24 Potentiometer, SRT-Type (Standard Rotational Torque), smooth torque
This specialty potentiometer is commonly used in guitar and bass amplifiers. However, it is also suitable for use in electric guitars and basses. This product is designed with the features most widely requested by amplifier designers.

• Mounting: Panel
• Shaft Type: round, straight
• Terminal: Solder Terminal
• Power Rating:
  • Log: 250 mW (1/4W)
  • Lin: 500 mW (1/2 W)
• Max. Operation Voltage:
  • Log: 250 V
  • Lin: 500 V
• Standard Resistance Tolerance: 15%
• Operating Temperature: - 10 C bis +70 C
• Diameter Shaft:    6,35 mm
• LengthShaft: 19 mm
• Rotational Torque: Standard, 20 to 40 g-cm

Bourns Guitar Potentiometer

• Power Rating: 250 mW (1/4 W)
• Voltage Rating: 250 V
• Tolerance: 20 %
• Termination Style: Solder Lug
• Element Type: Carbon
• Shaft Diameter: 6 mm
• Shaft Type: Knurled Split Shaft

Copper Stranded Wire Insulated, 10m, white

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

Specifications

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Copper Stranded Wire Insulated, 10m, Black

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

Specifications

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel
