Bottom 1434-30
Bottom 1434-30
Bottom 1434-30

Bottom 1434-30

Product No.:
ha1434-30
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
Stock:
5 piece
RoHs:
conform
Weight:
0.37 kg per piece
15,00 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

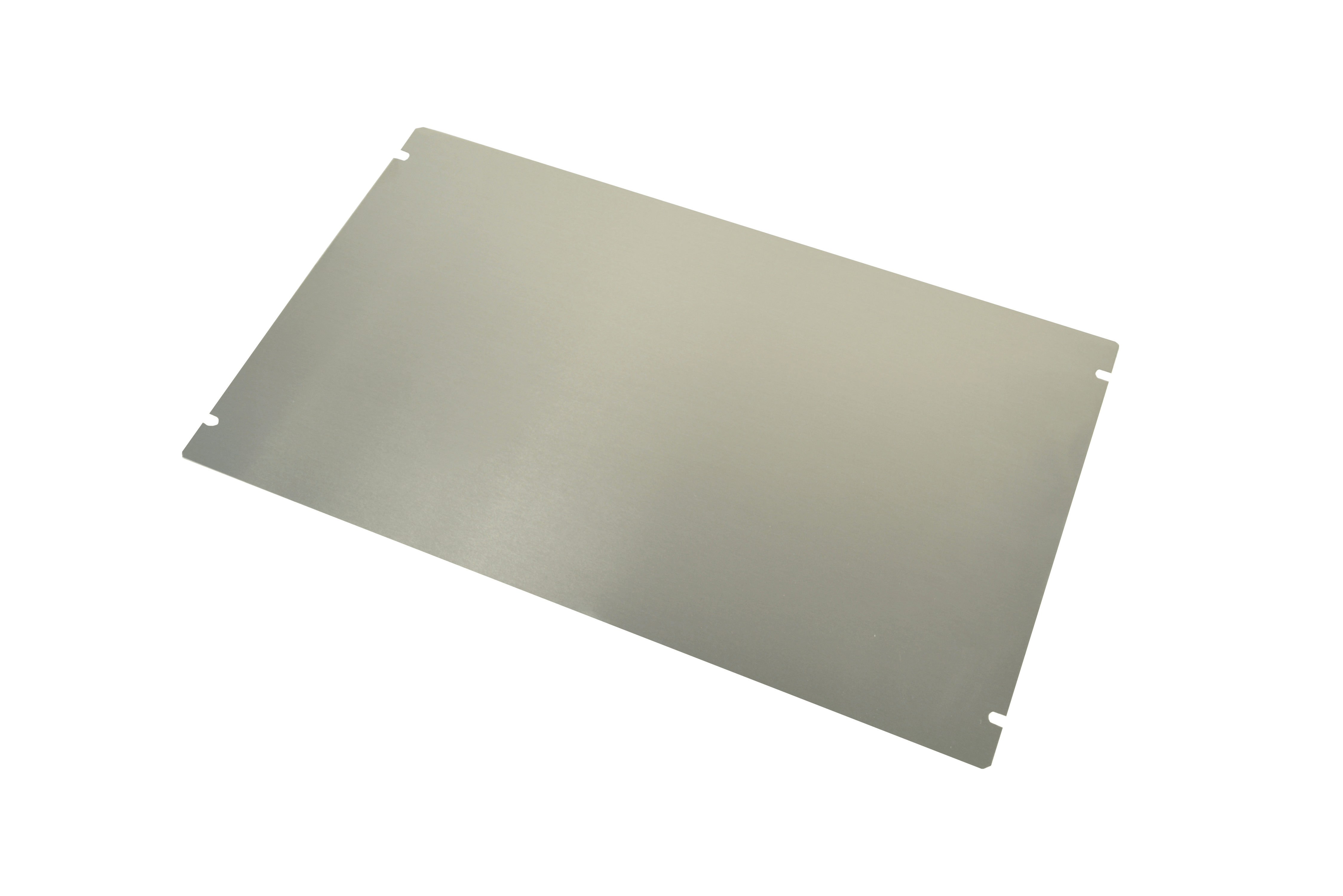

Aluminium Bottom Plate for Hammond 1444-Series Chassis

  • Size: 432 x 254 mm
Manufacturer
Herstellerinformationen | Manufacturer Information
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. N.
Guelph, Ontario
Canada N1H 1E5
https://www.hammondmfg.com

EU-Wirtschaftsakteur | EU Economic Operator
Tube-Town GmbH, Rumbergring 37, 66969 Lemberg, Germany, info@tube-town.de

Hammond Manufacturing is a renowned manufacturer of electrical and electronic products based in Canada. The company was founded in 1917 and has since established a reputation for producing high-quality enclosures, transformers, electronic components, and other device components.

Hammond Mfg is distinguished by its many years of experience, innovative products, and rigorous quality controls. Hammond's products are used in a variety of industries, including electronics, telecommunications, medical technology, industrial automation, and consumer electronics.

Tube-Town has been working with Hammond Mfg for decades and is a distributor for all types of transformers, chokes, and reactors, with a focus on tube technology, as well as enclosures and chassis.
Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.

Needed for:

Chassis AL 1444-33
Chassis AL 1444-33
  • Spot welded heavy duty construction chassis.
  • Natural finish as shown above - protected through manufacturing and shipping with a plastic skin cover to ensure a high quality finish.
  • Optional bottom plates are punched with 4 holes (Chassis requires drilling to install optional bottom plates).
  • Hardware not provided, please order separately
  • Size: 432 x 254 x 102 mm

Files:

40,40 €

Chassis AL 1444-32
Chassis AL 1444-32
  • Spot welded heavy duty construction chassis.
  • Natural finish as shown above - protected through manufacturing and shipping with a plastic skin cover to ensure a high quality finish.
  • Optional bottom plates are punched with 4 holes (Chassis requires drilling to install optional bottom plates).
  • Hardware not provided, please order separately
  • Size: 432 x 254 x 76 mm

Files:

37,30 €

Chassis AL 1444-30
Chassis AL 1444-30
  • Spot welded heavy duty construction chassis.
  • Natural finish as shown above - protected through manufacturing and shipping with a plastic skin cover to ensure a high quality finish.
  • Optional bottom plates are punched with 4 holes (Chassis requires drilling to install optional bottom plates).
  • Hardware not provided, please order separately
  • Size: 432 x 254 x 51 mm

Files:

31,90 €
