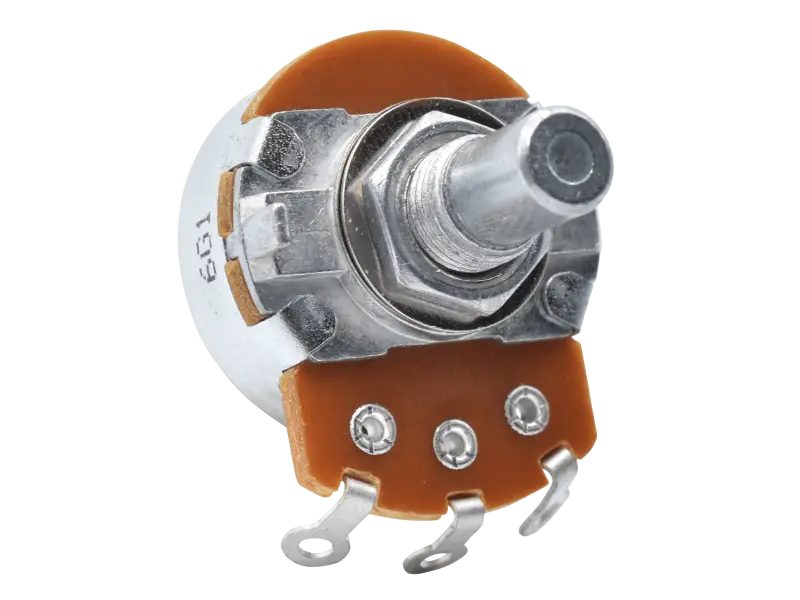

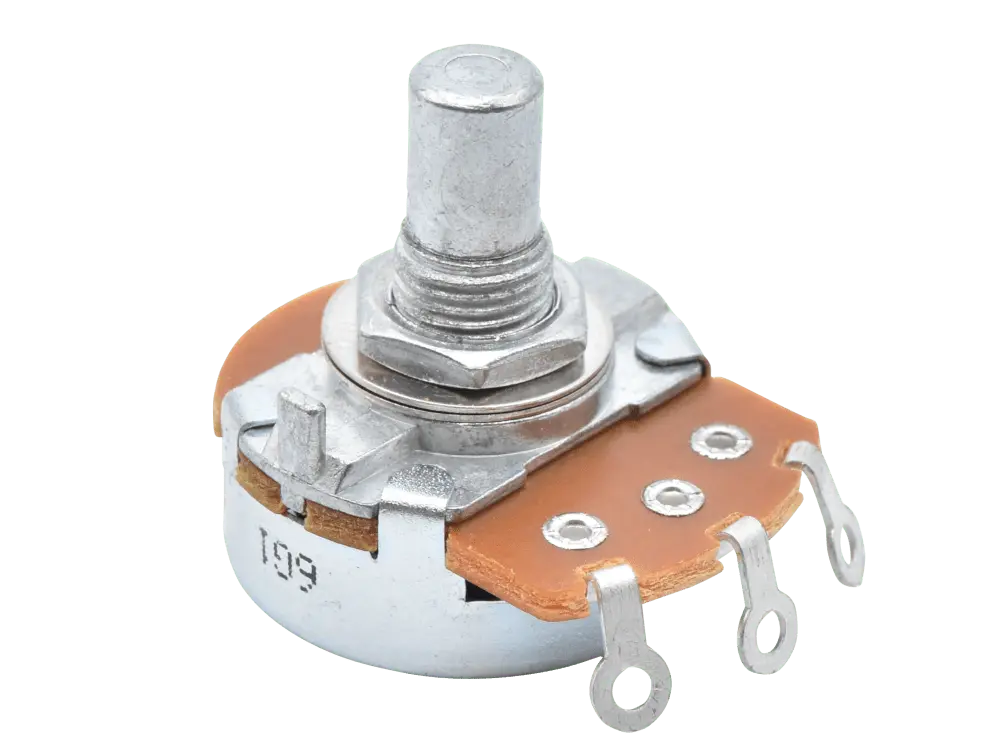

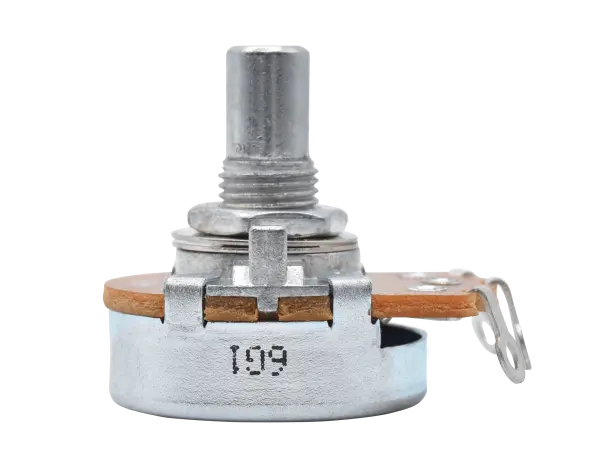

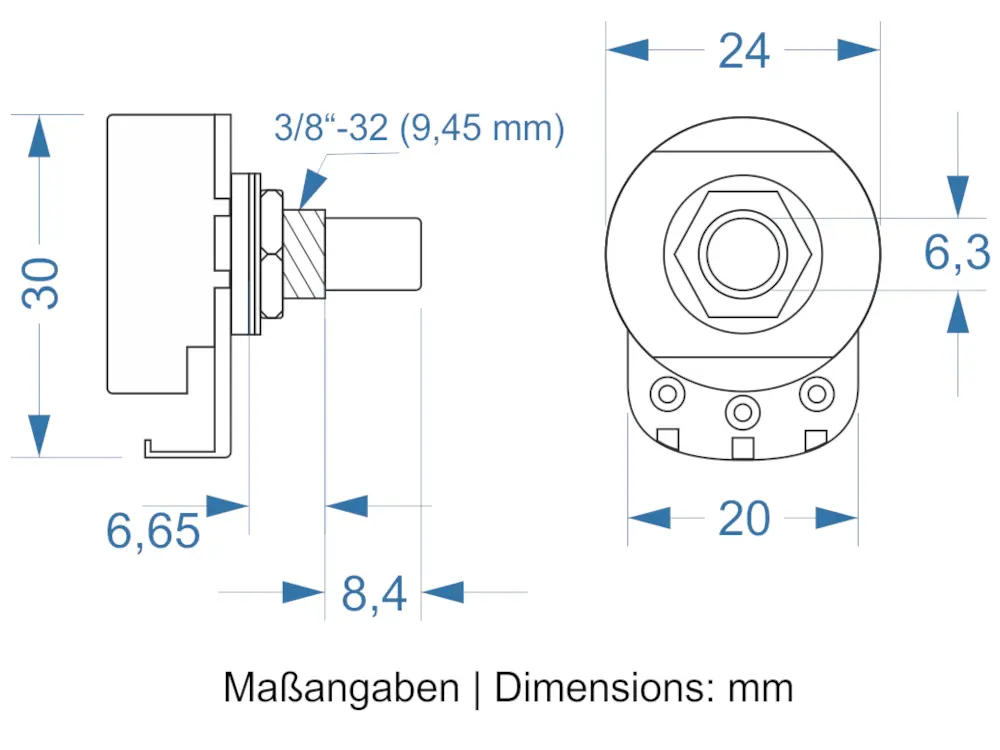

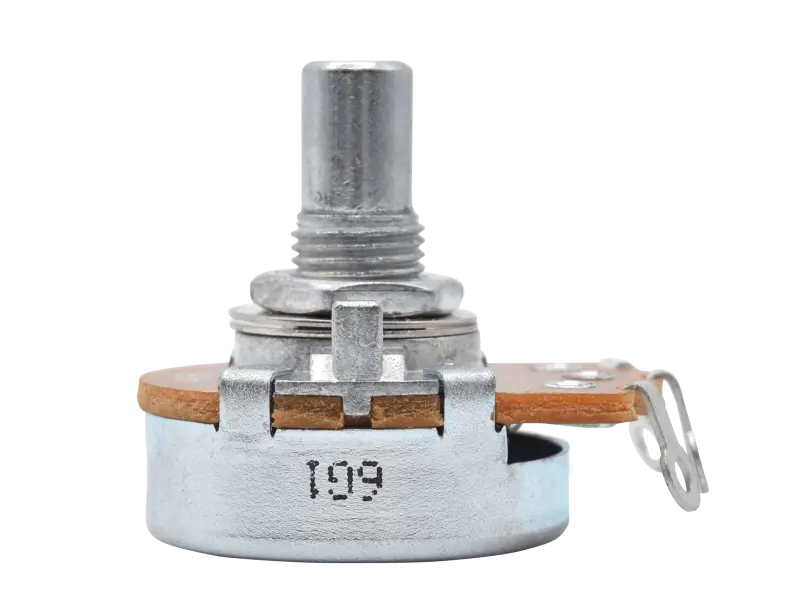

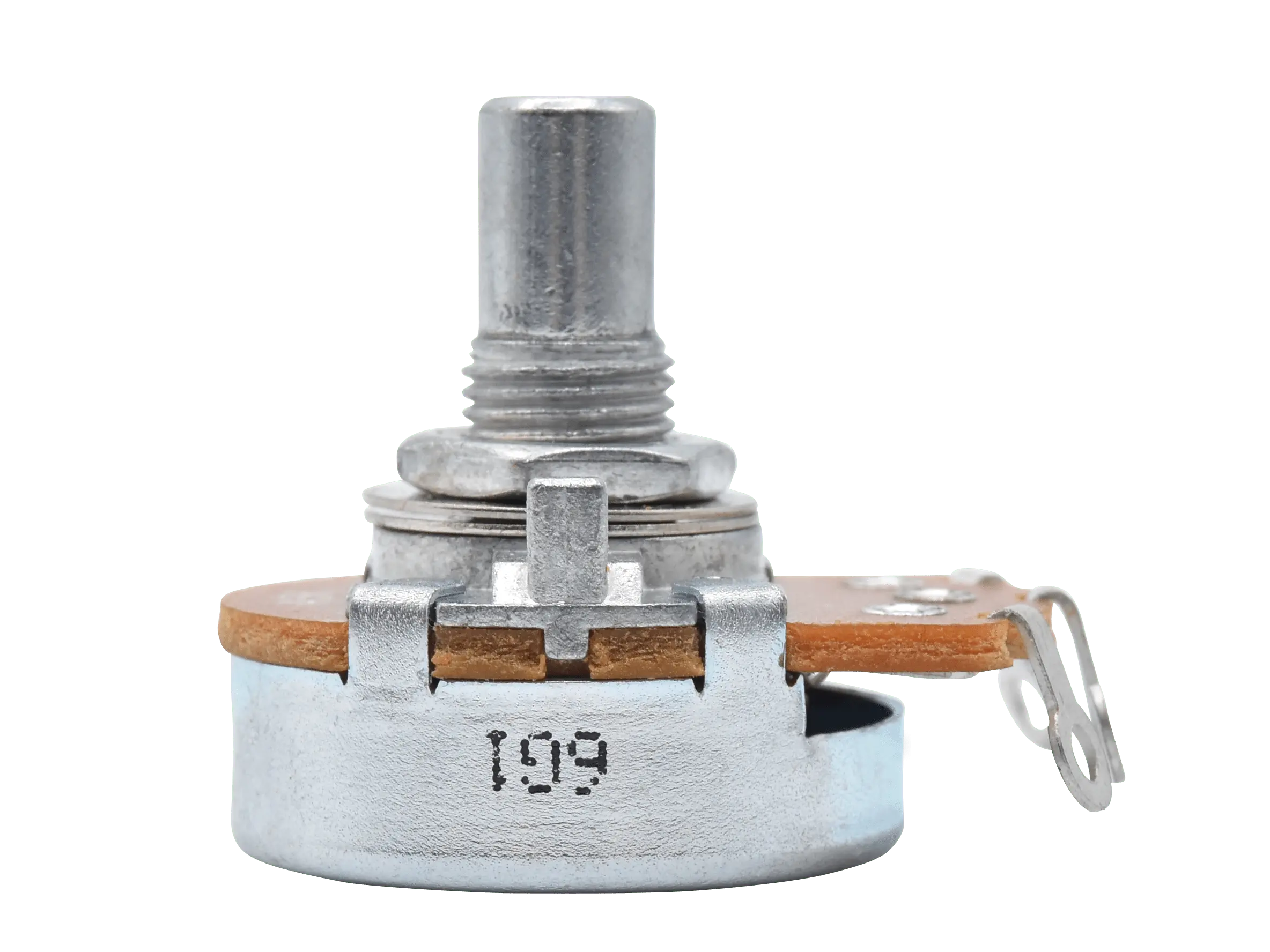

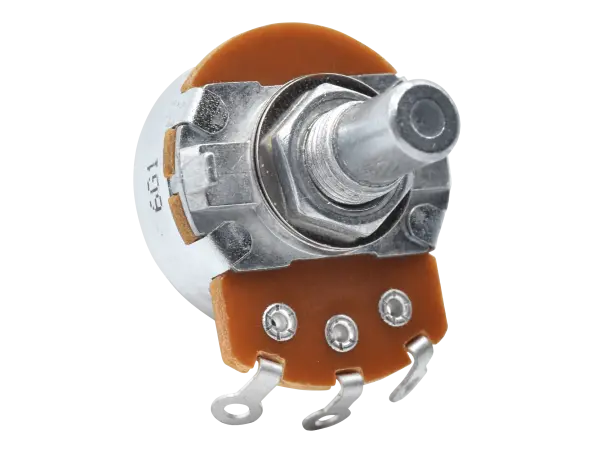

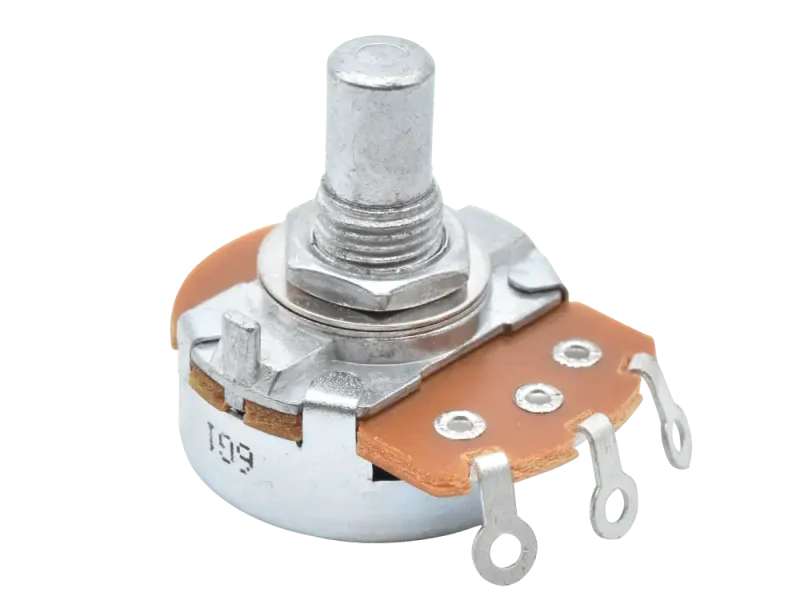

Alpha 25 kOhm log / Audio, 3,8"

Fender-Style Outputtransformer for 5E3, vertical mounting

• Pri.: 8000 Ohm C.T.
• Sec.: COM-4-8-16 Ohm
• Power: 25 Watt

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1: 300-0-300 V @ 0,126 A (red-green/white-blue)
• Sec 2: 0-5-6,3V @ 2 / 1 A (orange-pink-gray)
• Sec 3: 3,15-0-3,15 V @ 3,25 A (black-brown-purple)
• long leads ca. 200 mm
• Size: 102 x 52 mm

A customer from Sweden has send us this info:
this PT can be used to replace the power transformer in an Egnator Tweaker 15. Please see:
http://www.rig-talk.com/forum/viewtopic.php?f=26&t=169993
and
http://www.thegearpage.net/board/index.php?threads/egnater-tweaker-15-mods-if-any.1184645/page-4
Tweaker 15 original PT

Primary windings
1; Brown - Black (117 VAC)
2; Blue - White (100VAC)
For 230 VAC use :
Blue and Black cables are connected together
and Brown and White cables connected to 230 VAC

Secondary windings
1; Red-Black-Red ( 290 VAC - Center Tap[ground] - 290 VAC)
   Connections on circuit board = QC8 -- QC10 -- QC9

2; Green-Black-Green ( 3.15 VAC - Center Tap - 3.15 VAC) Heater
    Connections on circuit board = QC23 -- QC3 -- QC20



• Type: Electrolytic capacitor
• Capacitance: 47 µF
• Voltage Rating: 100 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 18 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Size: 380 x 76 x 1,6 mm
• gray

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 5%
• Temperature range: -55° C...200° C
• Flame retardant
• Small Size
• Size: 9,7 x 2,4 mm

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Pri.: 3800 Ohm C.T.
• Sec.: 4-8-16 Ohm
• Power: 50 W (18Hz -3dB)

Files:

• Datasheet

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Primary: 8 kOhm
• Secondary: 4, 8 and 16 Ohm
• Power: 18 Watt
• Made in Europe

Files:

• Datasheet

• Core M6
• Primary: 120-230V-240V @ 50Hz
• Secondary HT and bias, 300V-50V-0-300V @ 300mA
• Secondary Heater: 3.15V-0-3.15V @ 6A

Files:

• Datasheet

Mixed sizes and colors, length 10 cm / ea

• 30 x 1,5mm Ø
• 30 x 2,5mm Ø
• 20 x 4mm Ø
• 10 x 6mm Ø
• 6 x 10mm Ø
• 4 x 13mm Ø

In plastic box

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

Width ca. 135 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

Please note !
when you order more than 1 m and select Deutsche Post / DHL Parcel (Not DHL Express)
we need to cut the width of the tolex to ca. 115 cm. Otherwise it is not
possible to ship the tolex with DHL because the parcel length would
exceed the maximum parcel length.
