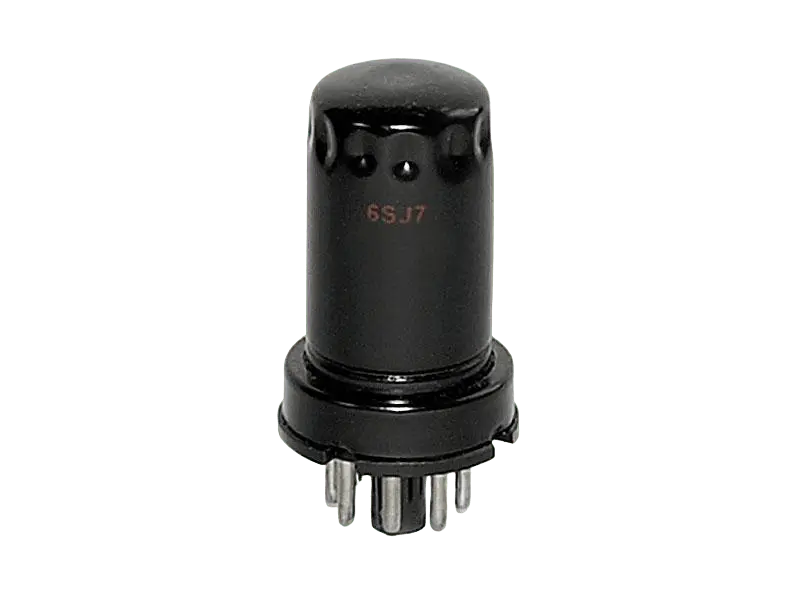

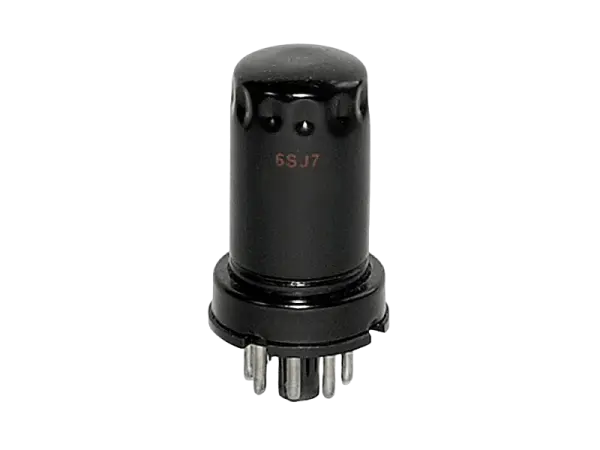

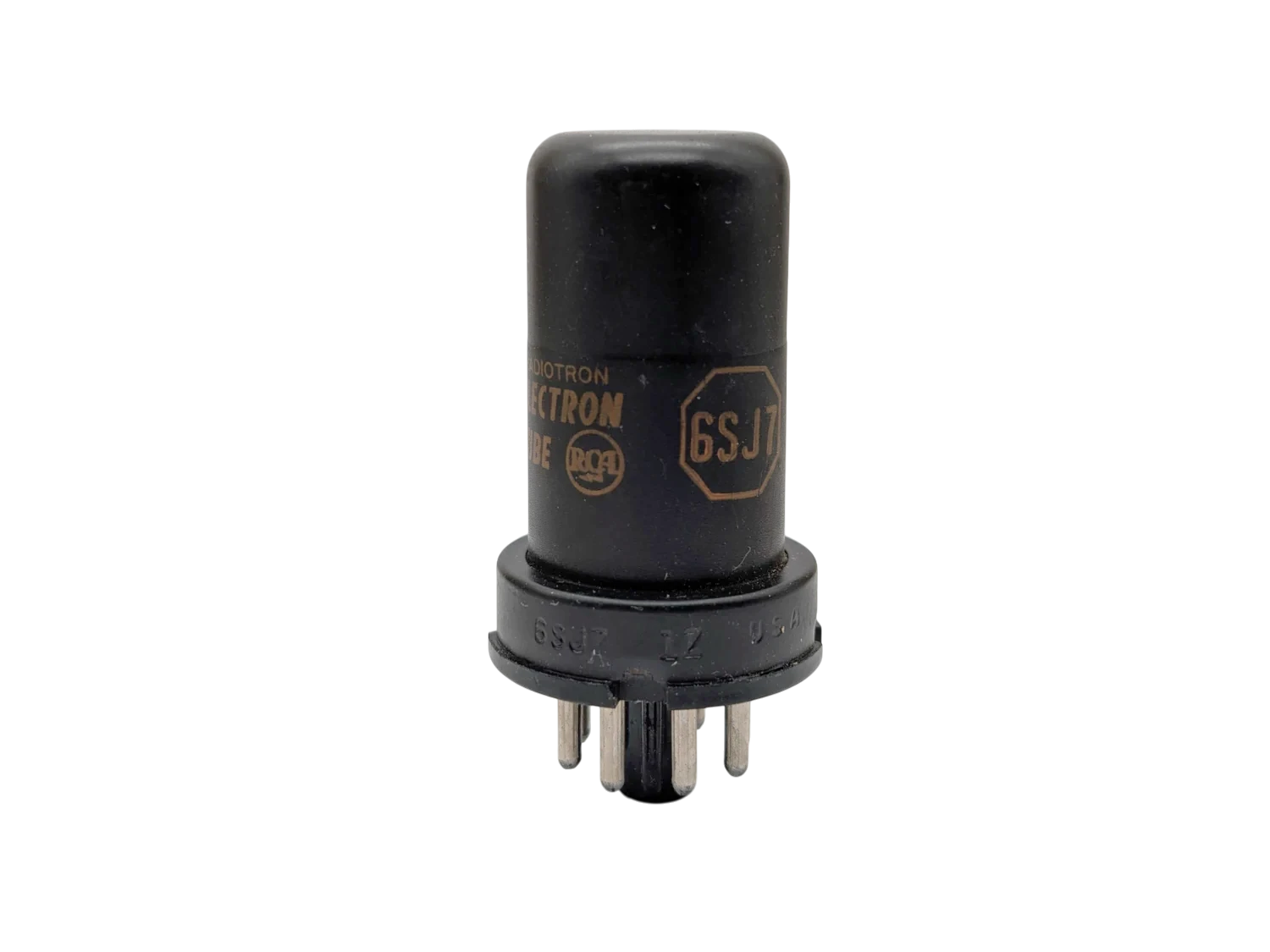

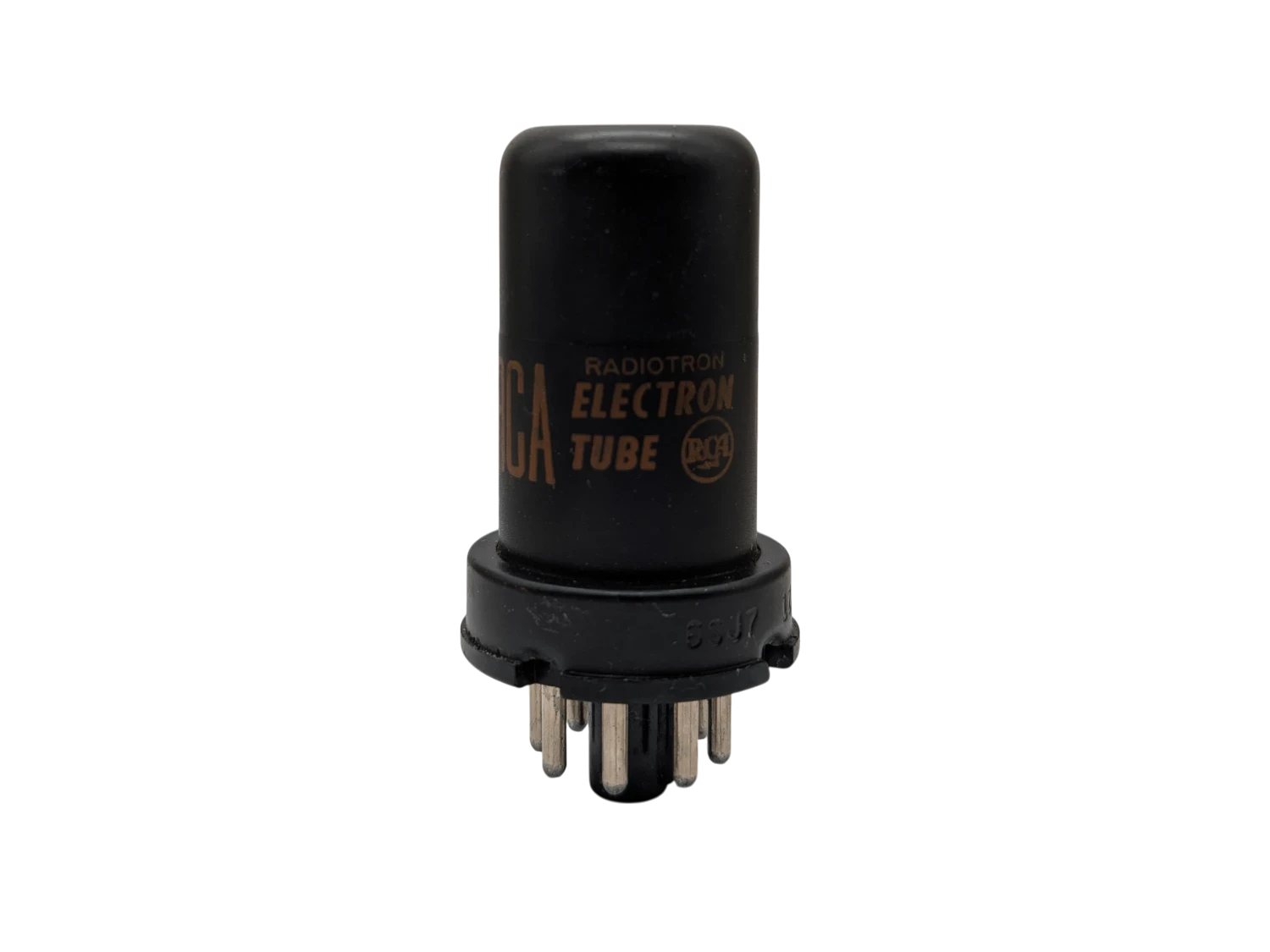

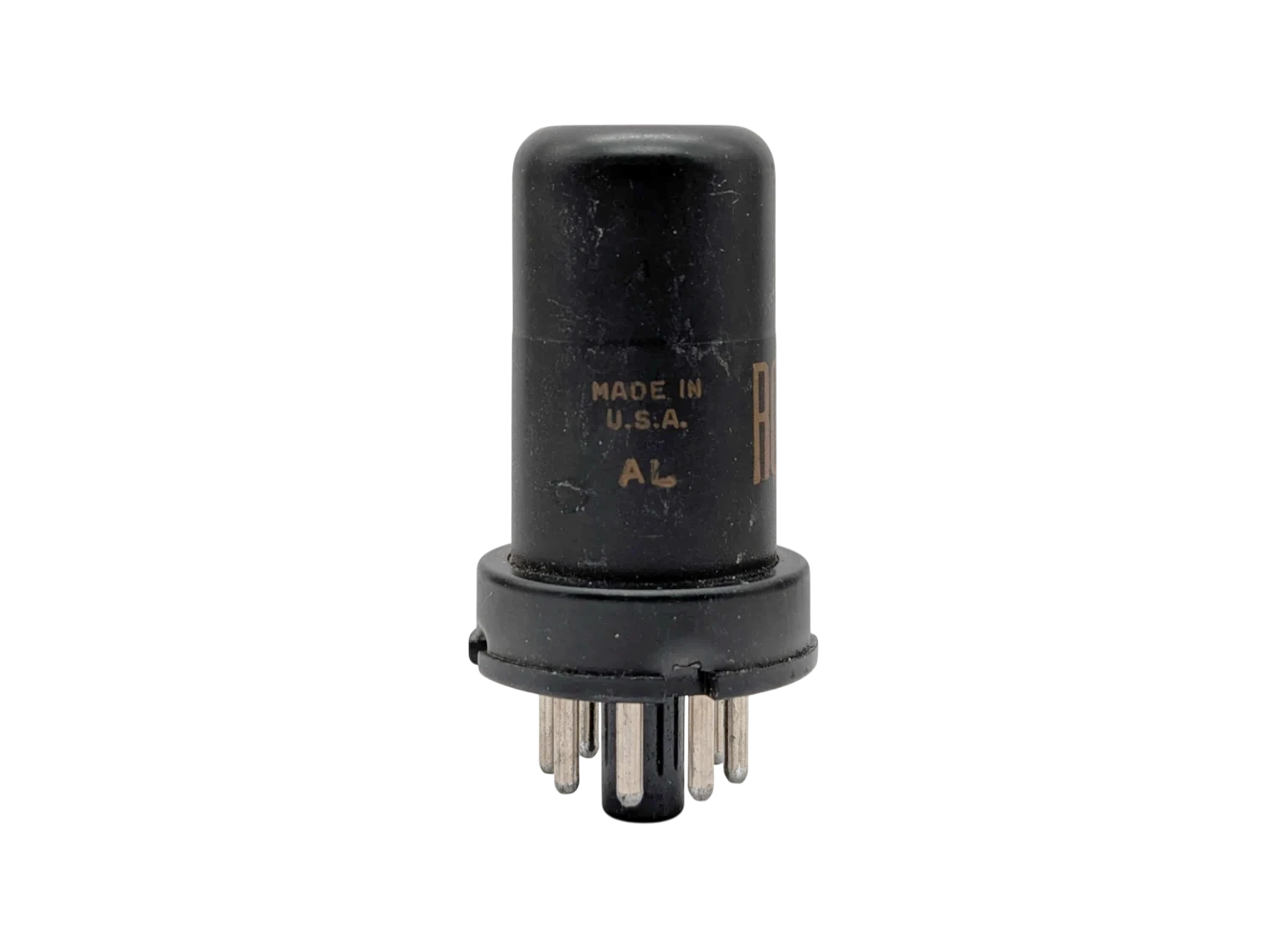

RCA 6SJ7 / VT-116 JAN
RCA 6SJ7 / VT-116 JAN
RCA 6SJ7 / VT-116 JAN

RCA 6SJ7 / VT-116 JAN

Product No.:
rca6sj7
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
not conform
Weight:
0.04 kg per piece
29,00 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

The RCA 6SJ7 VT-116 is a classic pentode tube from the golden era of tube technology, manufactured to strict quality standards of the U.S. Military Specification (JAN - Joint Army-Navy). It is extremely resilient against microphonics and mechanical influences, designed for military continuous operation.
With its metal enclosure, it has effective electromagnetic shielding and is ideal for sensitive signal processing.

Technical specifications:

  • 6SJ7 / VT-116
  • Tubular system: Pentode
  • Heater voltage (Uf): 6.3 V
  • Heater current (If): 300 mA
  • Anode voltage (Ua): max. 300 V
  • Anode current (Ia): approx. 3 mA
  • Transconductance (S): approx. 1.65 mA/V
  • Amplification factor (µ): approx. 19
  • Construction: Metal tube
