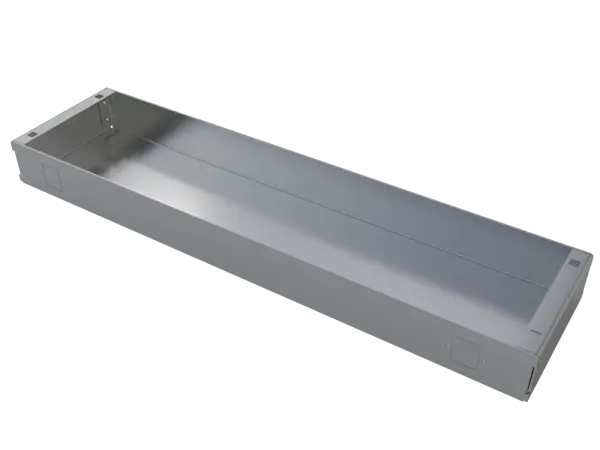

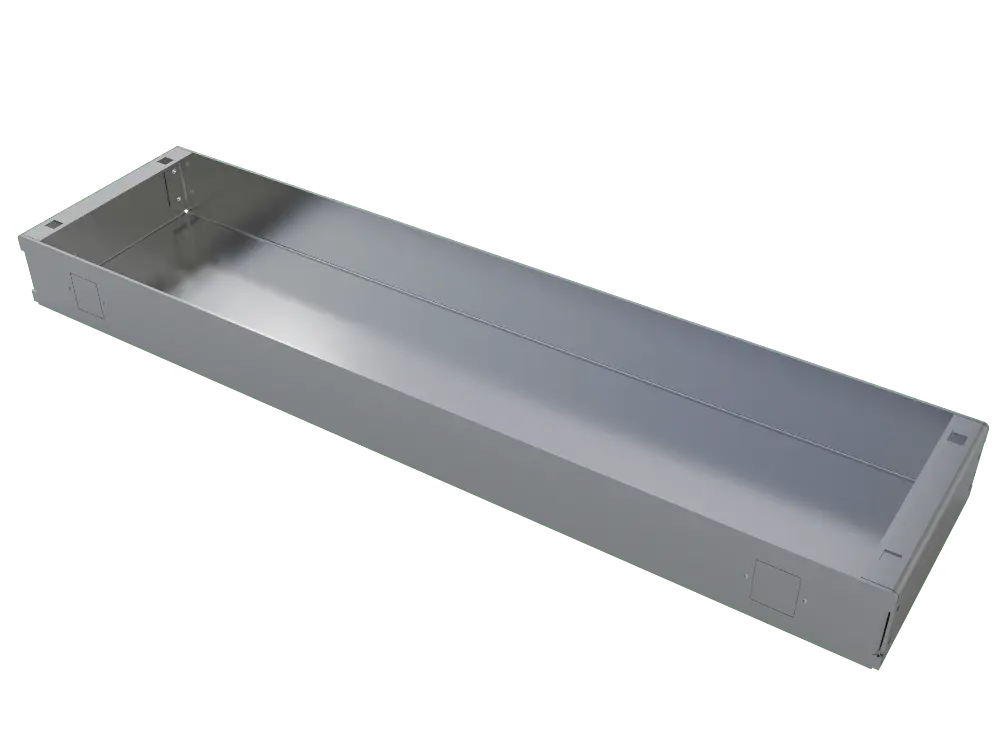

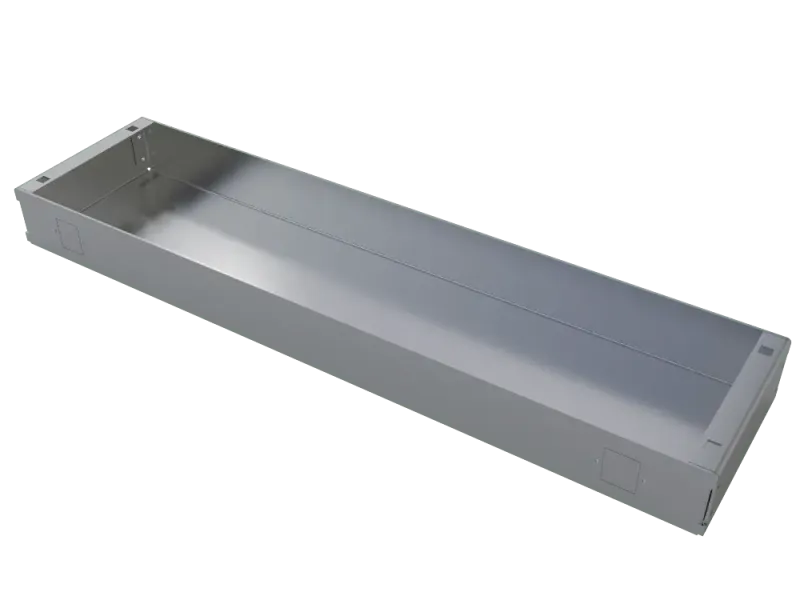

TT-Chassis 057 - 686 x 170 x 65 - JCM

Beschreibung

TT-Chassis Aluminium - Typ 057 - Modellversion V2019

Größe (JCM Größe):
- Länge: 686 mm
- Tiefe: 170 mm
- Höhe: 65 mm
Material: 2 mm Aluminium
Verstärkte Ecken, genietet, verzugs- und spannungsfrei
Ausschnitte für Netzbuchse
Made in Germany
Befestigung: mit Käfigmuttern (nicht enthalten)
