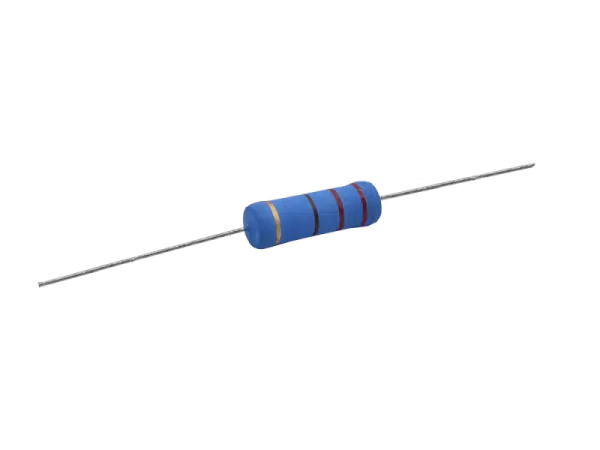

Metalloxid Widerstand 5 Watt, 10 kOhm , kleine Bauform

4 Röhren, gematcht als Quartett

Die JJ EL34 II ist in den unteren Mitten und Tiefen voller ohne dabei Abstriche bei den Höhen zu machen. Deutlich stärker als die normale JJ EL34 aber nicht so aggressiv wie die JJ E34L.

Typische Betriebswerte

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

Maximalwerte

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Dateien

• Datenblatt

• Sechskantdistanzbolzen mit beidseitigem Innengewinde
• Gewindemaß: M4
• Innengewinde: 7,5 mm / 7,5 mm
• Material: Polyamid
• Länge: 15 mm
• Farbe: schwarz

Glimmer Kondensator / Silver Mica

• Nennspannung: 500 V
• Toleranz: 5%
• Betriebstemperatur: - 50°C / + 150 °C
• Anschluss: radial

• Typ: HV Keramik-Scheibenkondensator
• Epoxydharzumhüllung, Flammhemmend
• Nennspannung: 2 kV
• Toleranz: - 20 % / +20 %
• Betriebstemperatur: - 40°C / + 85 °C
• Abmessung: 6,5 mm x 4,5 mm
• RM: 5

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years
